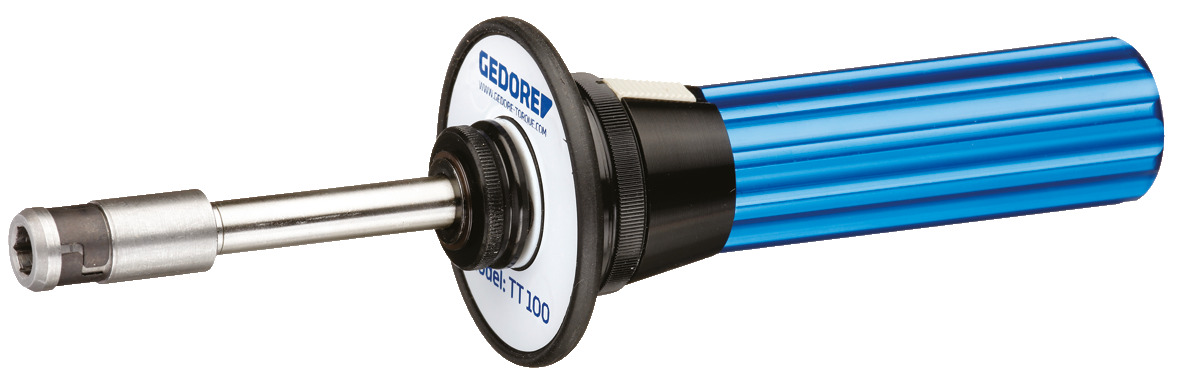

TT Measuring torque screwdriver Type FH

Use:

In the torque range 0.1 - 5.0 Nm

For test and installation work in the electrical and electronic hardware industry, instrument-making industry and industrial manufacturing or in quality control

Features:

Dial-indicating torque and test screwdriver - with dual scale (cNm/ozf·in/lbf·in)

With 1/4" female hexagon drive for use with 1/4" hexagon bits as per DIN 3126 - C 6.3

Display accuracy: +/- 6 % tolerance of the indicated value

Classification according to DIN EN ISO 6789 Type I Class D

For controlled r.h and l.h. fastening

With slave-pointer function

For locking of maximum values / maximum-value display

4 models ranging from 0.1 Nm to 5.0 Nm

Lightweight construction by virtue of anodised aluminium handgrips

EPA-conformant (Electrostatic Protected Area), for use in sensitive electrostatic applications

Scope of delivery:

Torque test screwdriver Typ TT

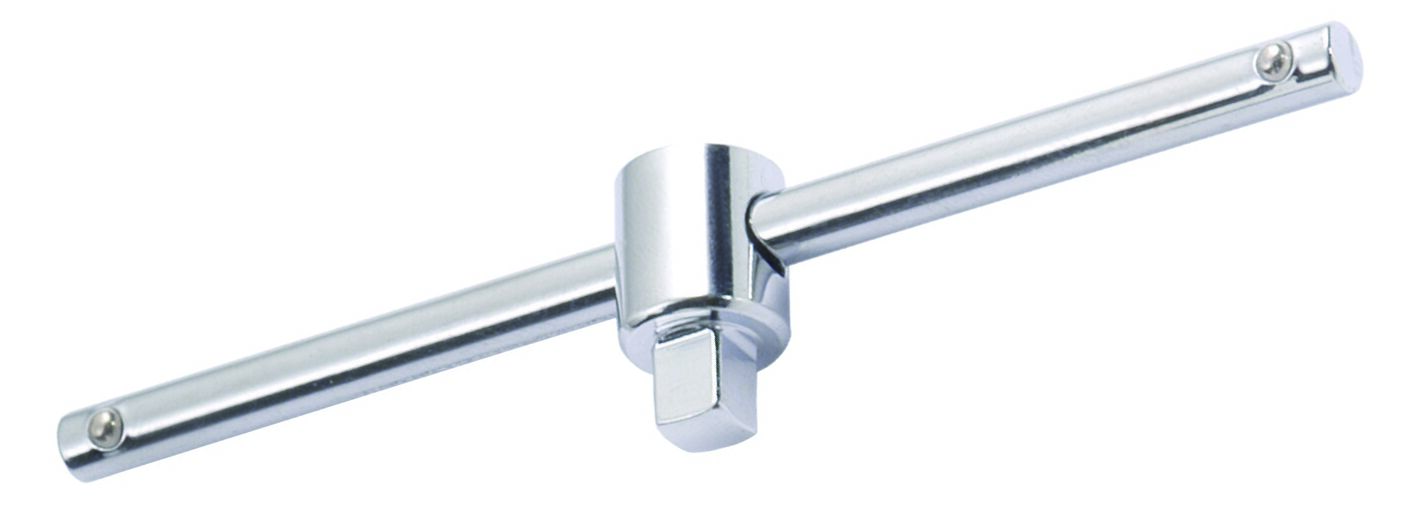

Model No. TT 250 FH; TT 500 FH with additional T-handle for easier handling

Test certificate acc. to DIN EN ISO 6789

Delivery in sturdy cardboard packaging
