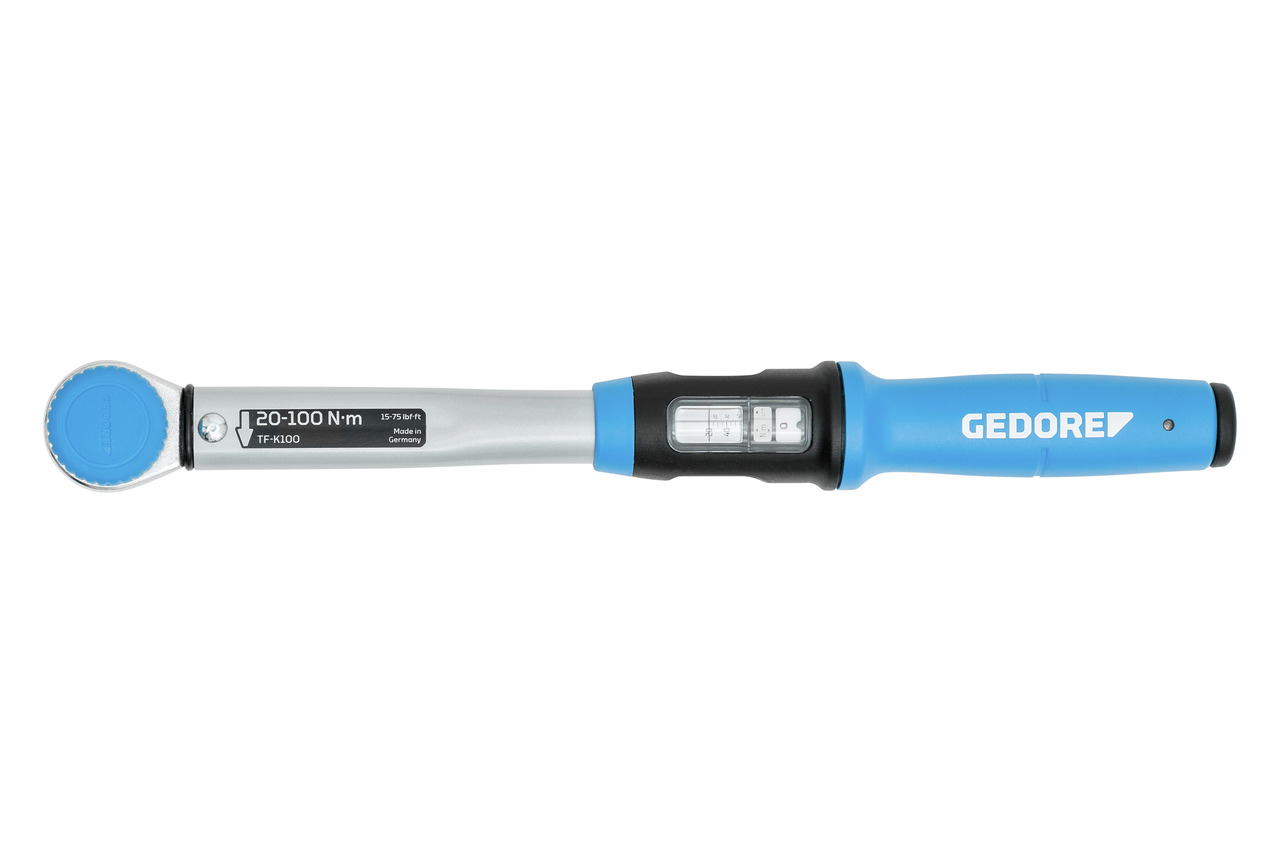

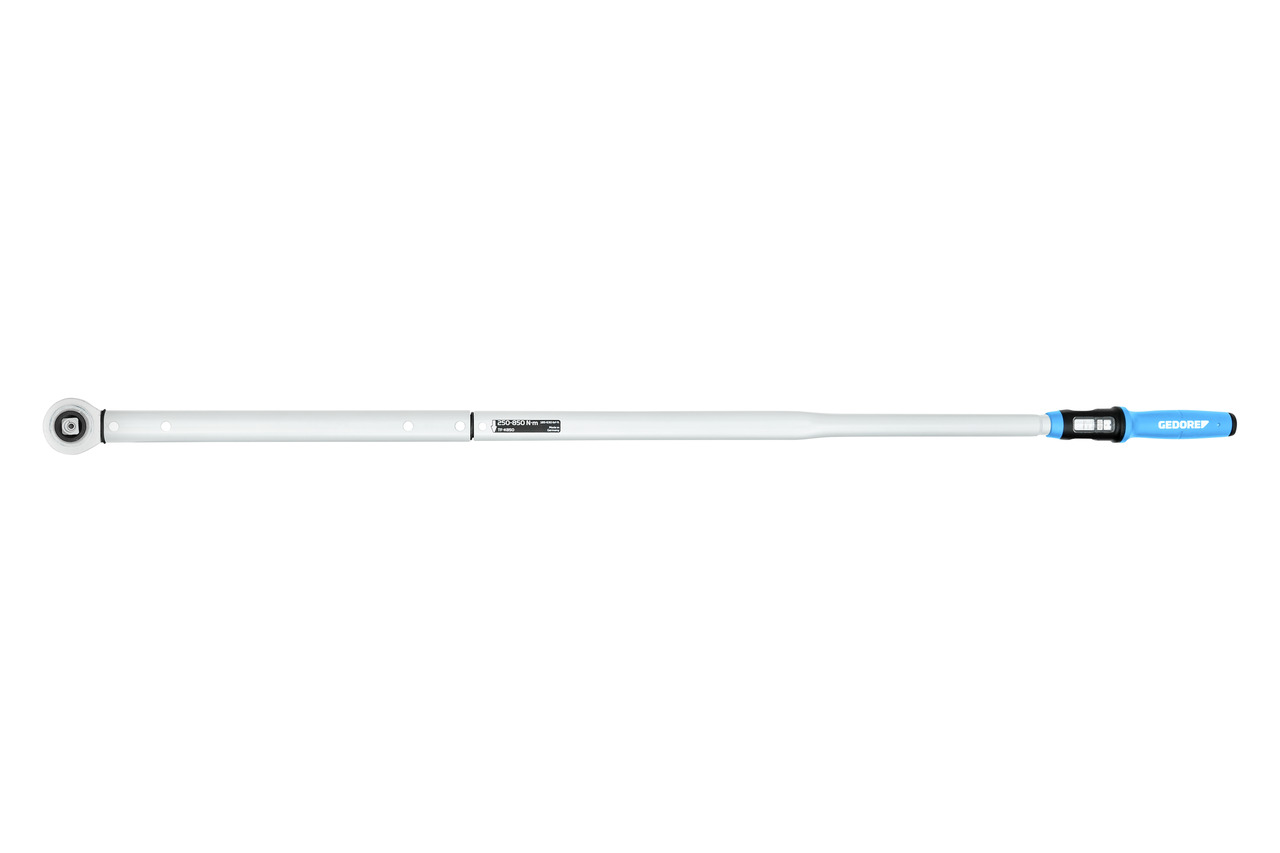

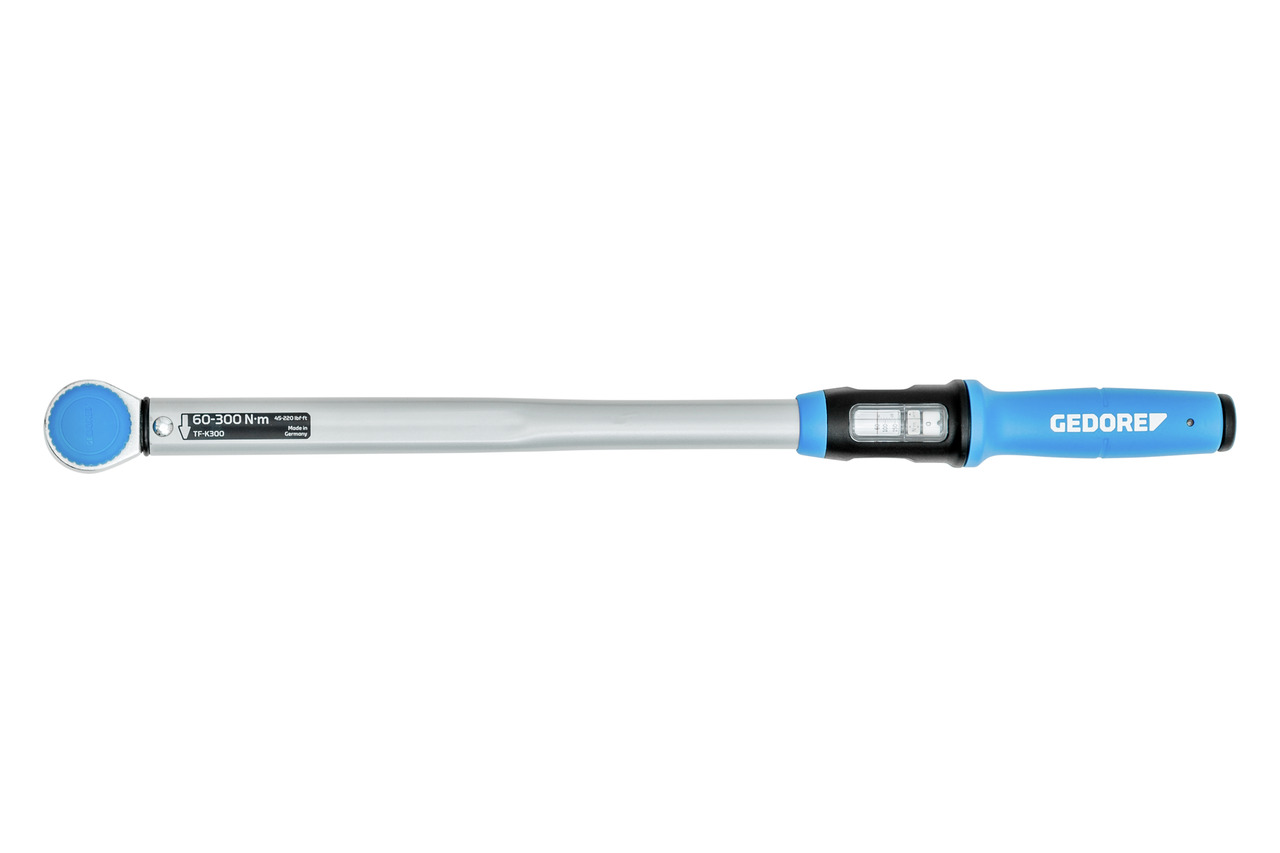

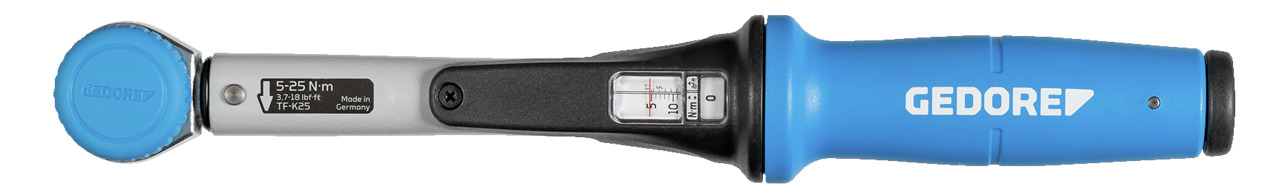

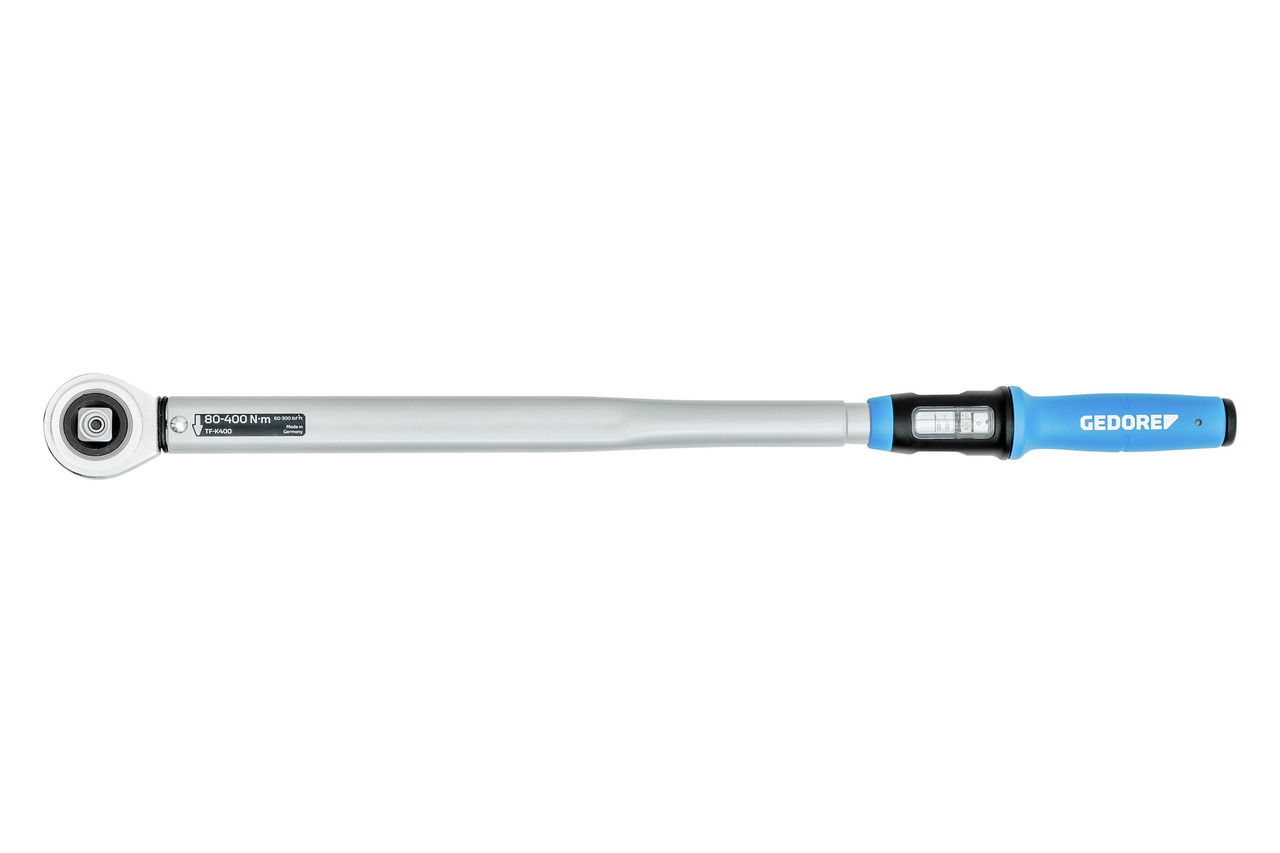

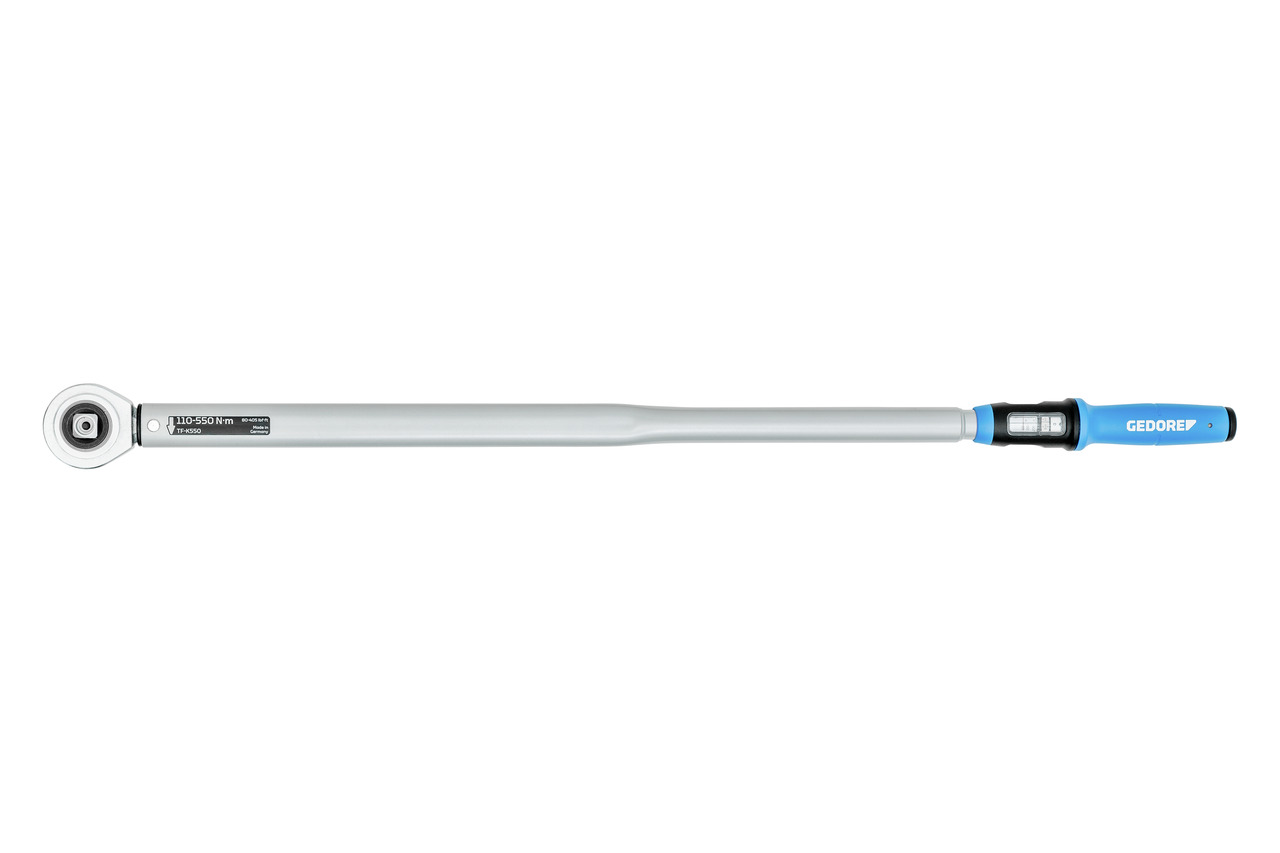

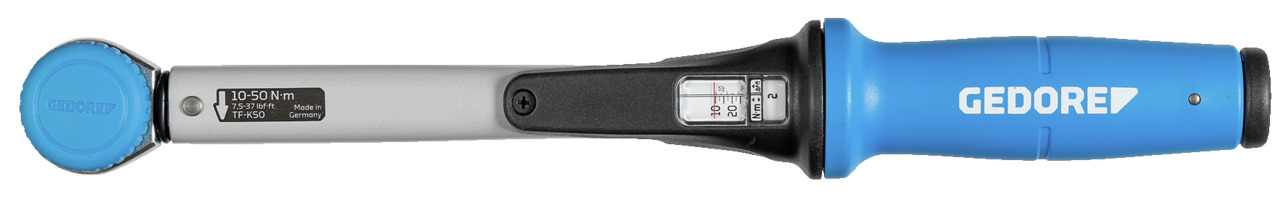

TF‑K Torque wrench TORCOFIX K

Use:

Controlled screw tightening in the range of 1 - 850 Nm / 0,75 - 630 lbf·ft

Adjustable, releasing and sturdy tubular torque wrench with integrated ratchet and with square drive for industry and the trades

Features:

Classified as per DIN EN ISO 6789-2:2017 Type II Class A; adjusted to a maximum permissible +/-3 % deviation and thus with a greater precision than the standard-stipulated +/-4 %

Incl. traceable test certificate (DIN EN ISO 6789-2:2017)

For controlled right- and left-hand tightening (square socket for direction change)

1/2" mushroom head square with ball lock. From 3/4" with square socket and pin retention

Robust, matt powder-coated tubular steel construction, with galvanized ratchet and high-quality plastic parts

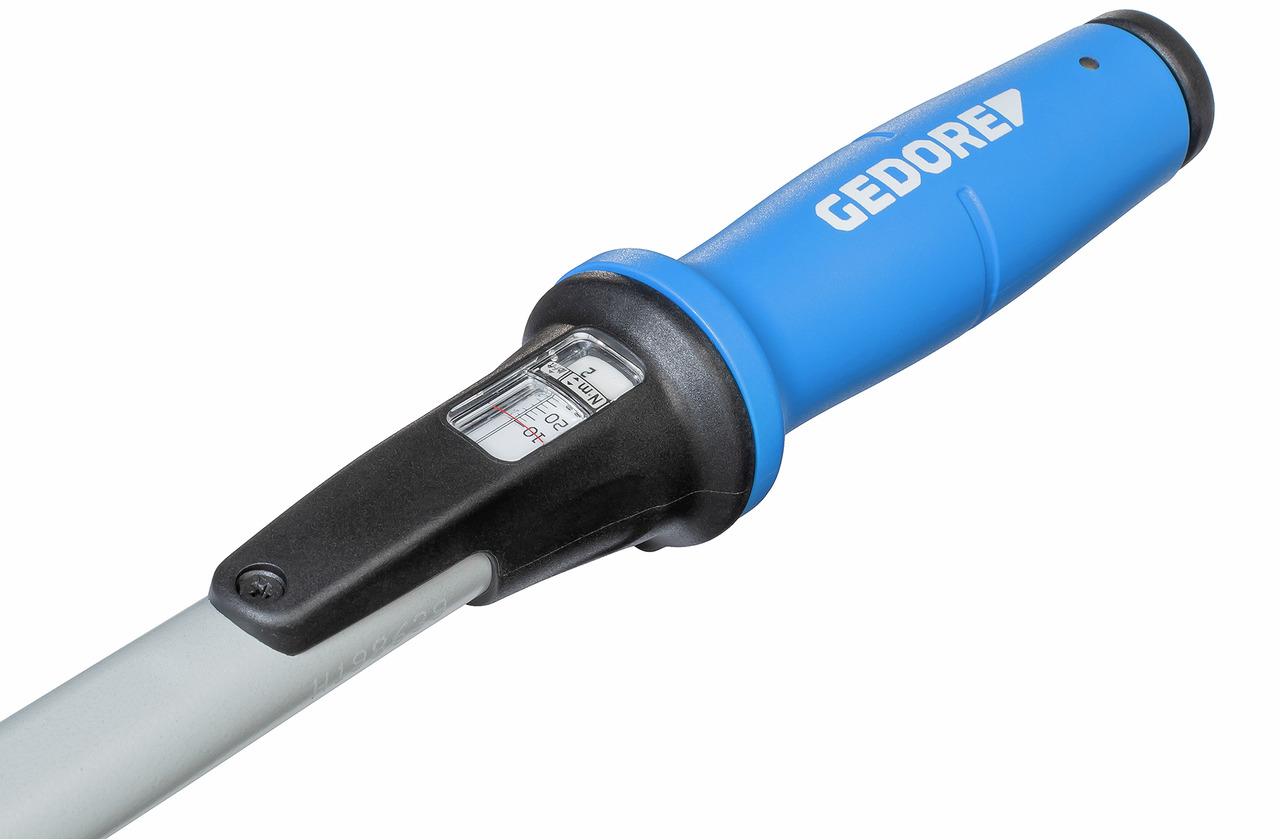

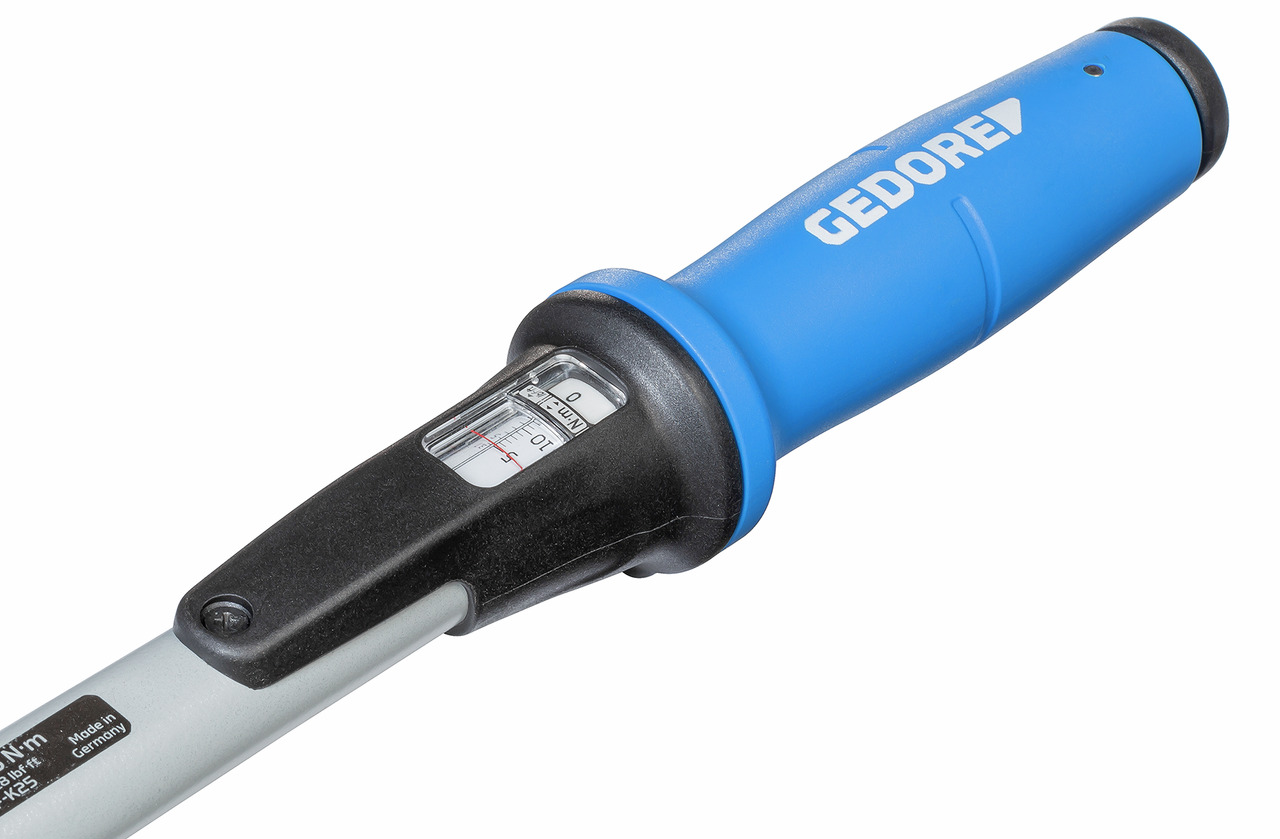

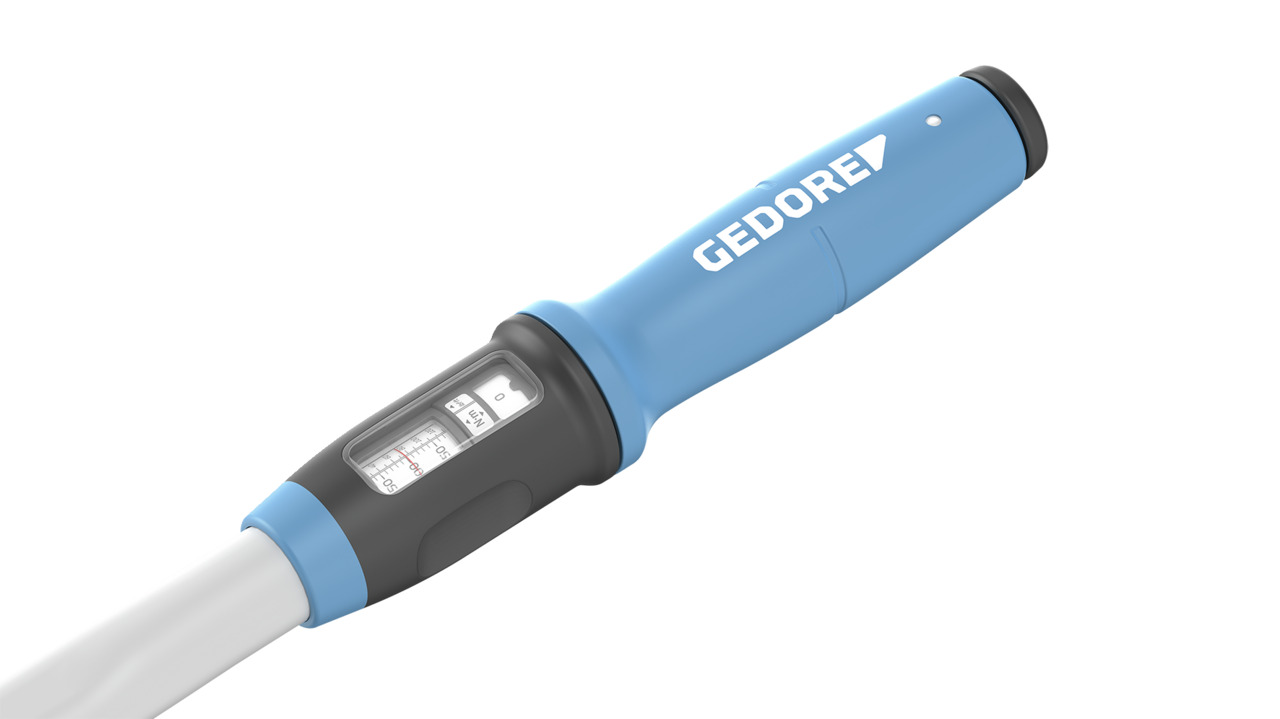

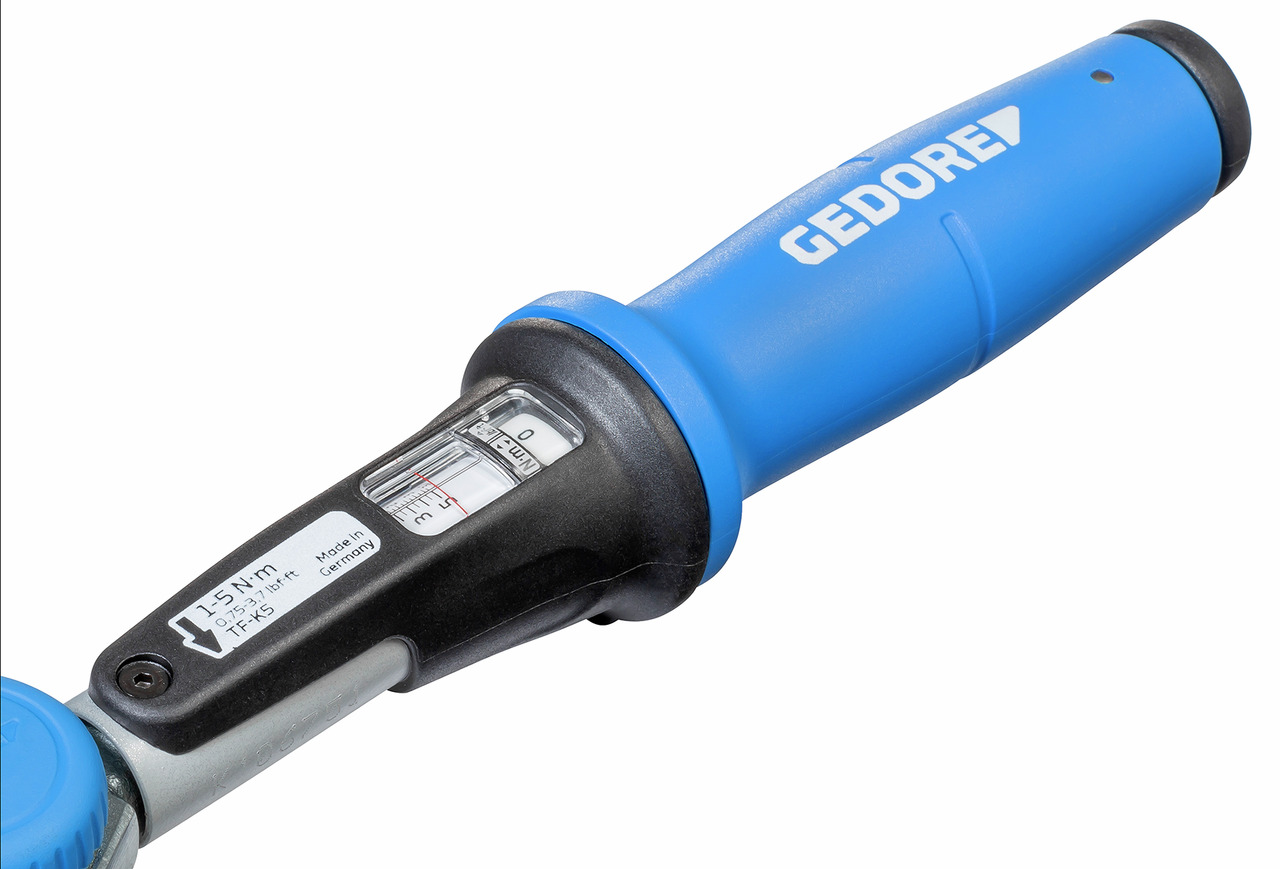

New ergonomic handle, shaped according to the natural grip position of the hand

clearly recognisable and tactile hand centring aid and calibration aid in the middle of the handle

Double scale Nm / lbf·ft and vernier are protected from abrasion and contamination by an enlarged viewing window

With vernier scale for Nm main scale for setting intermediate scale values; lbf-ft setting only via main scale

Vertical alignment of the scale, torque adjustment therefore suitable for left and right handers

Scale line positioned directly above the scale prevents reading errors (parallax errors)

Unit labeling integrated in the scale frame and also protected by viewing windows

The precise release mechanism generates a distinct tactile and audible release signal when the set torque value is reached

incl. roll away protection, prevents rolling away when the tool is put down
