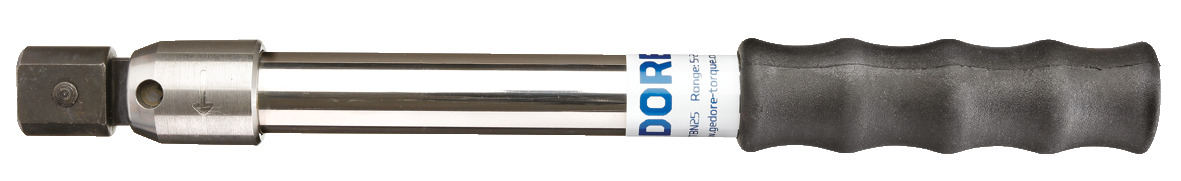

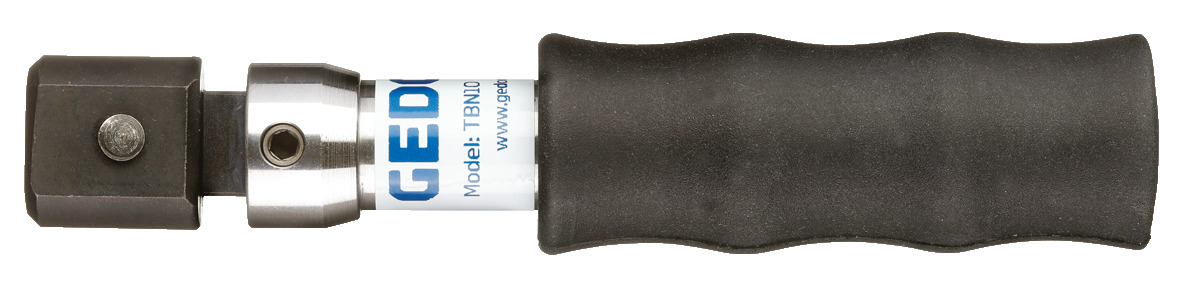

TBN Breaking torque wrench SE

Use:

Controlled screw tightening in the range of 0,4 - 200 Nm

Serial / production-line

Extremely long-term work

Features:

Pre-set torque wrench - without scale

With 9x12 mm Internal Square Drive

For bi-directional tightening (the wrench only has to be turned by 180°!)

Working accuracy: +/- 4 % tolerance of set torque

Acc. to DIN EN ISO 6789, traceable to national standards

Breaking of the handgrip by 20° when the pre-set torque value is achieved makes over-tightening unlikely

Automatic resetting to the starting position

Lightweight, but robust and corrosion-resistant construction design

Very convenient non-slip rubber handgrip

No. TBN 2 G: EPA (Electrostatic Protected Area) compliant, for use in electrostatically sensitive applications

The pre-setting can be made at the factory or by the user on suitable torque testers

If fixed setting at the factory is desired is required, please state the Nm value when ordering (price on request)

Scope of delivery:

Torque wrench TBN Breaking Torque wrench

Special adjusting key for changing the pre-set torque value

Test certificate acc. to DIN EN ISO 6789

Delivery in sturdy cardboard packaging
