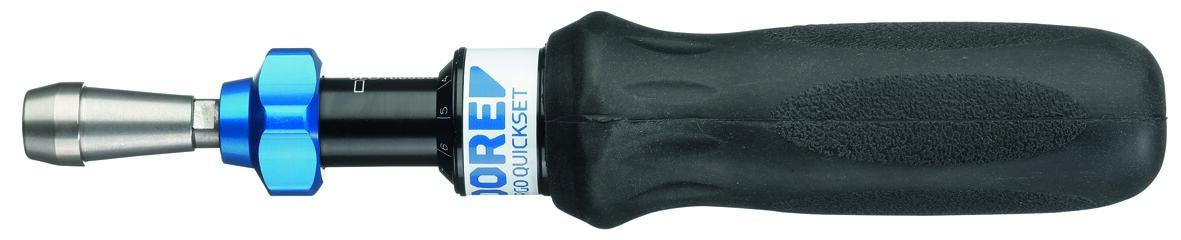

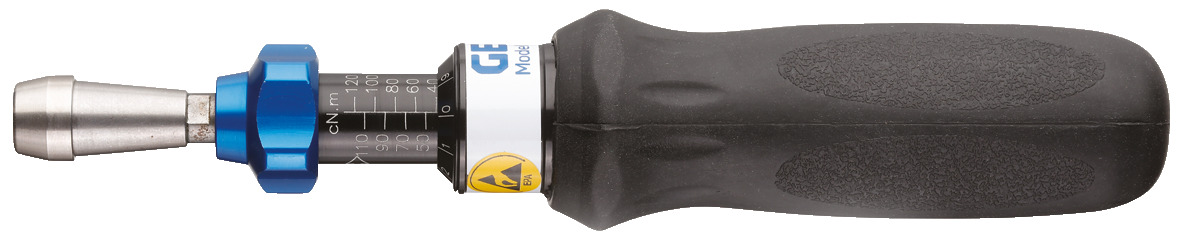

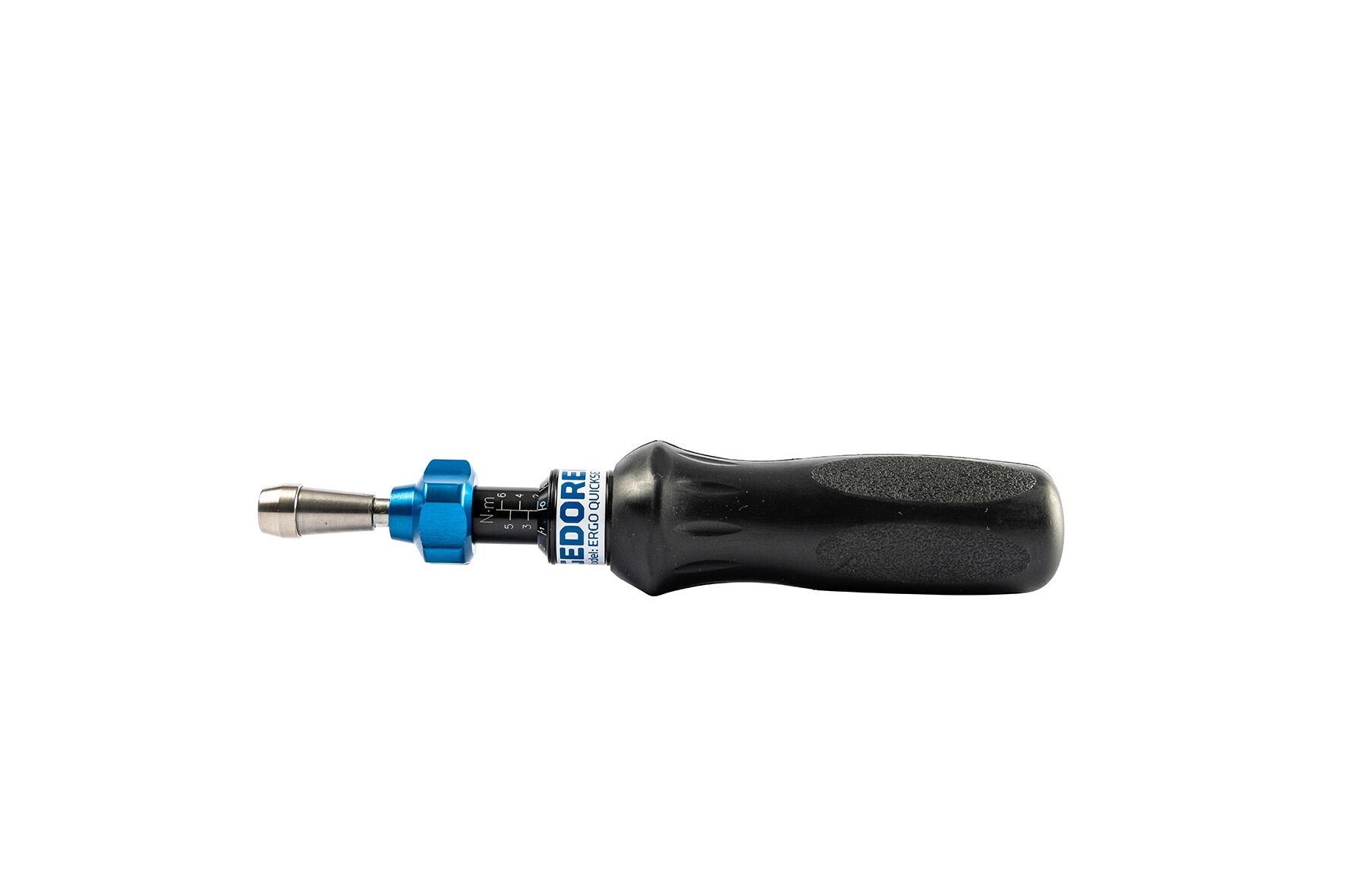

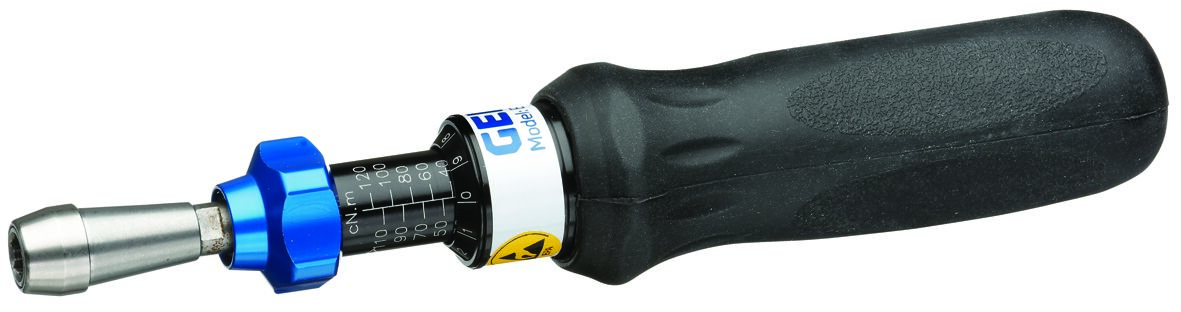

QSN Torque screwdriver Typ QSN FH

Use:

Controlled screw tightening in the range of 0,08 - 9 Nm

High-speed, controlled tightening enables serial production

Electrical and electronic hardware industry, instrument-making industry and industrial manufacturing or in quality control

Features:

Adjustable Torque Wrench - with Scale

With 1/4" female hexagon drive for use with 1/4" hexagon bits as per DIN 3126 - C 6.3

Working accuracy: +/- 6 % tolerance of set torque

Acc. to DIN EN ISO 6789, traceable to national standards

Precision radial ball clutch and cam design for controlled bi-directional tightening

Precision mechanism slips very noticeably when the pre-set value is achieved

Automatic resetting to the starting position

"Positive-Lock" system automatically fixes the set value preventing it from wrong setting

4 models ranging from 0.08 Nm to 9 Nm

Micrometre scale graduation: 1 cNm resp. 0,1 Nm

EPA-conformant (Electrostatic Protected Area), for use in sensitive electrostatic applications

Scope of delivery:

Torque screwdriver type QSN

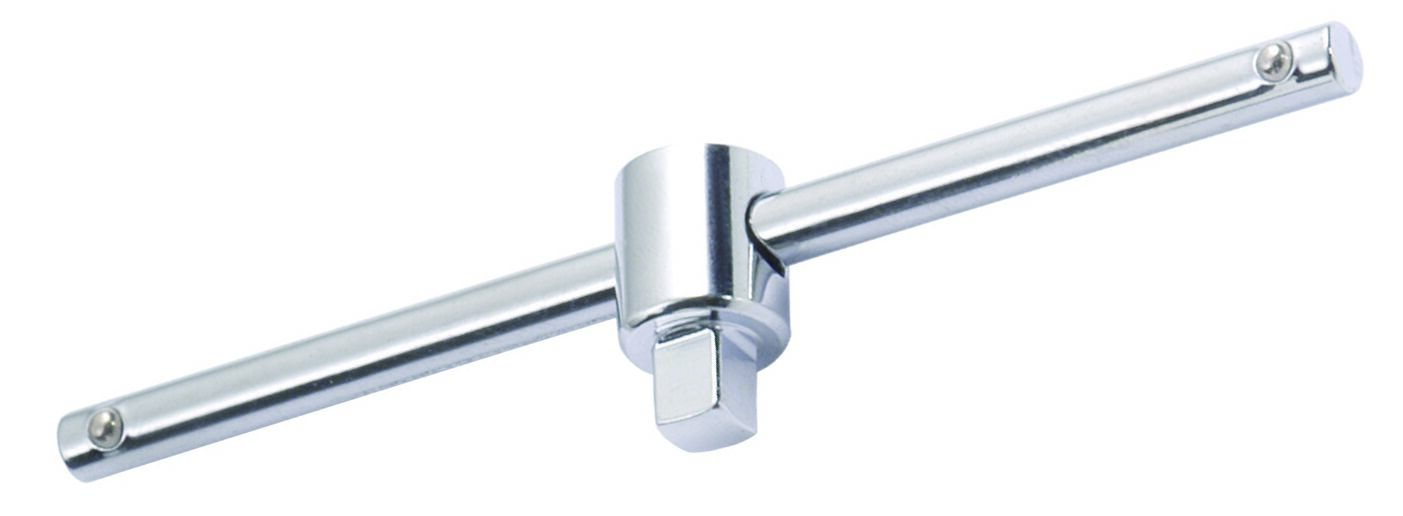

Model No. QSN 600 FH / QSN 900 FH with additional T-handle for easier work

Test certificate acc. to DIN EN ISO 6789

Delivery in sturdy cardboard packaging
