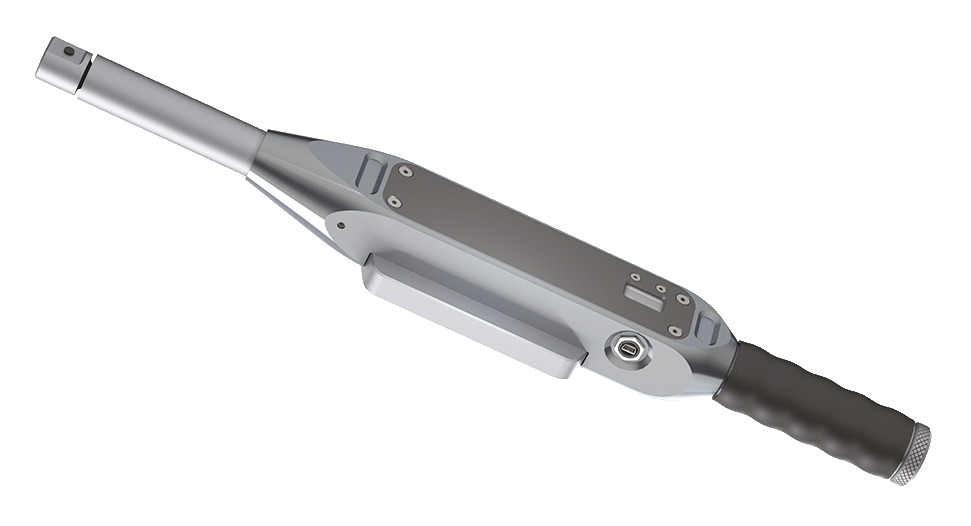

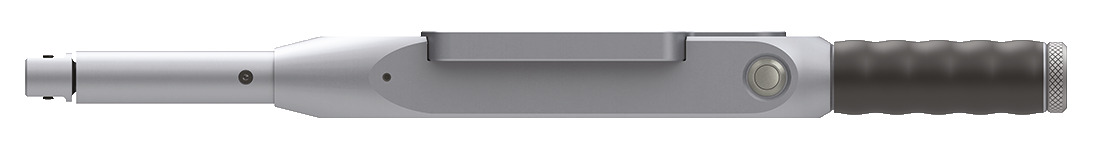

ETQ Electronic torque wrench E‑torc Q

Electronic torque and angle wrench for the application area of ??quality/analysis

Enables the control of screwing including curve evaluation, directly on the wrench, for analysis and quality assurance purposes

5 models in the range from 10 to 1.000 N·m

Thanks to extreme precision - measurement accuracy +/- 1% (torque & angle of rotation) - even the highest industrial requirements are met.

All common measuring methods (torque, angle of rotation, yield point, further turning (VDI-compliant), loosening-tightening, flow charts)

Up to 9,999 measurement data and curves can be recorded in the large internal memory

Data can be transferred wirelessly via WLAN or USB cable.

If required, the E-Torc Q can also be loaded with work plans and images to guide workers, and the measurement data can be sent back via WLAN.

Work plans can be started via the menu or via the integrated 2-D scanner (optional).

Optionally, a connection via CAQ systems can be made possible.

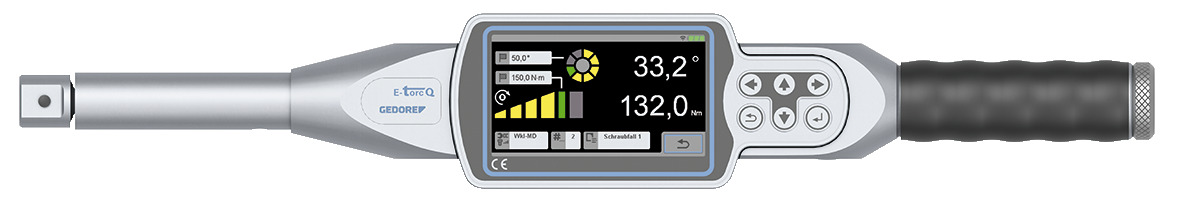

A viewing angle-stable and high-contrast 4.3" touch display enables intuitive and fast operation

The large display allows measurement data to be called up, screwing curves to be superimposed and evaluated directly on site on the wrench

Reaching or exceeding the set target value is signaled to the user visually (display), haptically (vibration in the handle) and acoustically (beep).

The housing can be rotated by +/- 60°, allowing the display to be read even in hard-to-reach screw locations.

A powerful lithium-ion battery enables a long running time and service life (no memory effect)

The battery can be easily replaced using the quick-change system and charged using the optionally available charging station.

Factory-supplied with factory calibration certificate in accordance with GEDORE's in-house standard GTTWN001, traceable to national standards

Calibration according to DKD-R 3-7 Class 1 including calibration certificate with accreditation symbol (optional)

Programmable with different gauges for insertion tools

Free evaluation PC software included in delivery
