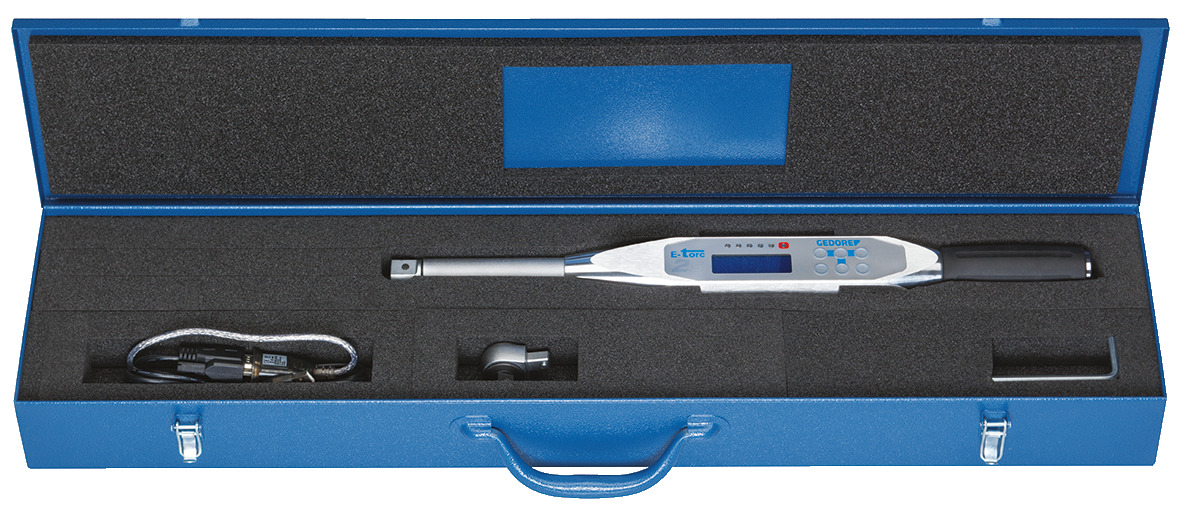

ET2SA Electronic Torque wrench E‑torc

Electronic Torque & Angle Wrench for use in production/assembly

Enables a proper and safe/controllable (assembly) screwing process and traceability/proof of screw connections that require documentation

5 models in the range from 2 to 1.000 N·m

Thanks to the utmost precision - measurement accuracy +/- 1% (torque & angle of rotation) - even the highest industrial requirements are met.

Torque/angle of rotation, track (sliding value display), peak (peak value), up to 100 presets, work plan.

The internal memory records up to 2,000 measurement data and curves.

Data can be transferred via USB cable or wirelessly via WLAN (optional).

The work plan and screw parameters can be started via the menu or via the integrated 1-D scanner (optional).

The backlight allows the display to be read even in poor lighting conditions

Reaching or exceeding the set target value is signaled to the user visually (display, LED progress bar), haptically (vibration in the handle) and acoustically (beep).

The housing can be rotated by +/- 60°, making it possible to read the display even in hard-to-reach screw locations.

Two standard AA batteries/rechargeable batteries supply the E-Torc II with sufficient voltage

A charging/communication station is optionally available

Factory-supplied with factory calibration certificate in accordance with GEDORE's in-house standard GTTWN001, traceable to national standards

Calibration according to DKD-R 3-7 Class 1 including calibration certificate with accreditation symbol (optional)

Programmable with different gauges for insertion tools

Free evaluation PC software included in delivery
