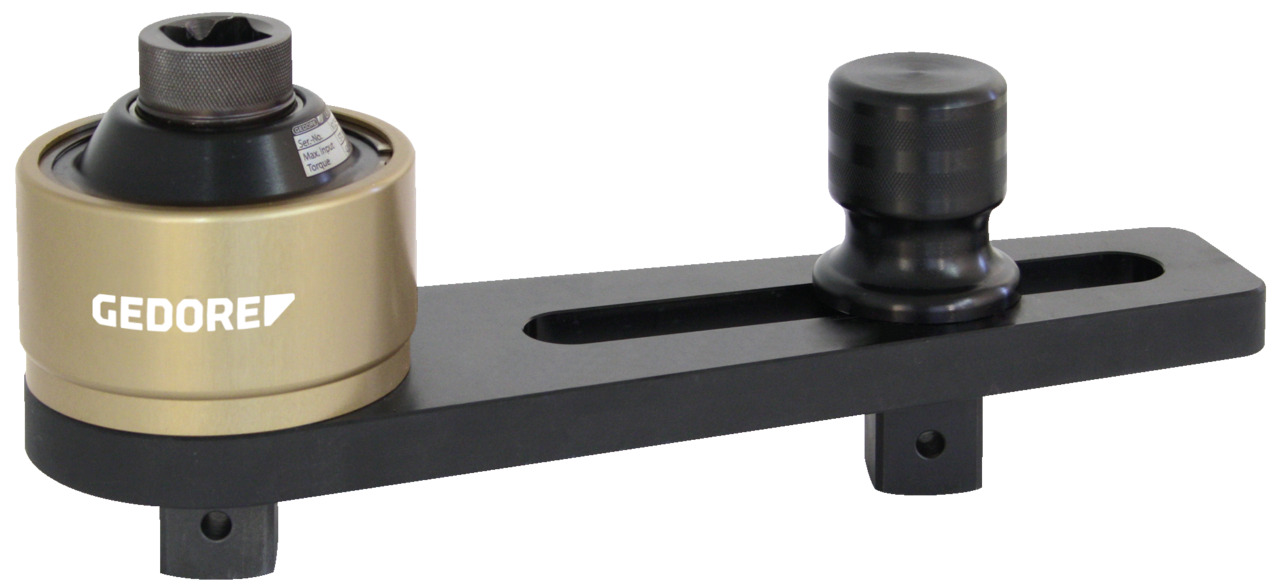

DVI-20L/Z + DVI-28L/Z Torque multiplier DREMOPLUS ALU 2000–2800 N m / 1500–2050 lbf ft

Especially suitable for:

Industry, construction sites, commercial vehicle and car workshops, agricultural technology, construction machinery

Bridge, ship, aircraft and railway construction, refineries

Machinery and plant engineering, maintenance

Features:

Mechanical hand torque multiplier for controlled screw tightening and unloosening screw connections

With single stage planetary gearing

High-performance aluminium housing

Models with transmission ratio 1:4, 1:5.5

Guaranteed accuracy: Better than +/- 3 % tolerance

To operate with a suitable torque wrench

2 models with maximum load in the range from max. 2000 Nm to 2800 Nm

Model -Z: with cranked reaction arm Z-shaped made of chrome vanadium steel

Model -L: with straight reaction arm L-shaped, with adjustable reaction square, made of light metal

Output square with hole for Impact sockets with locking pin and ring
