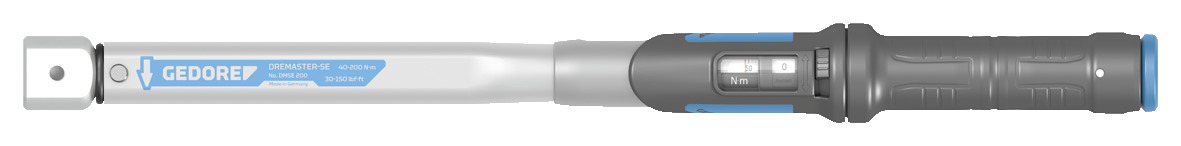

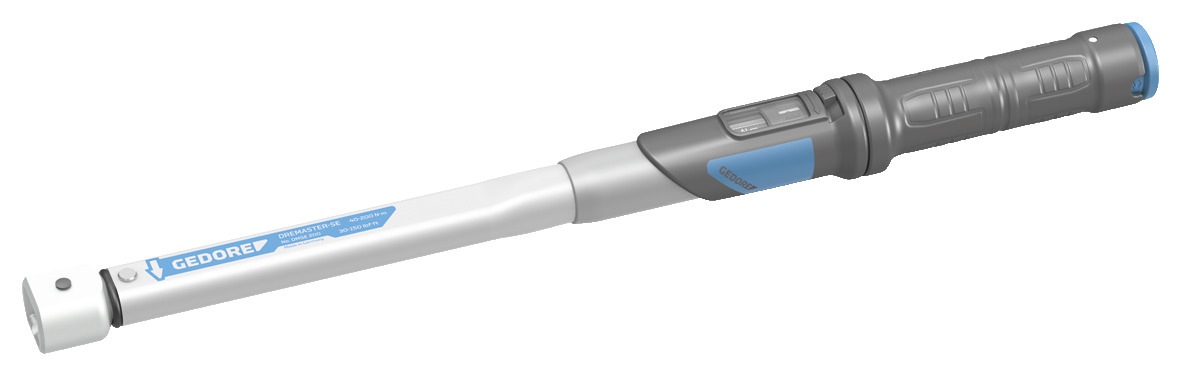

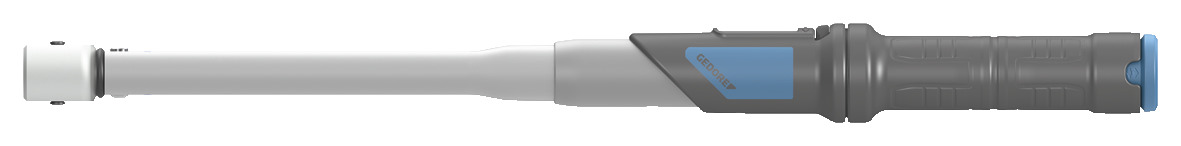

DMSE Torque wrench DREMASTER® SE

Use:

Controlled screw tightening in the range of 20 - 400 Nm / 15 - 300 lbf·ft

Adjustable, releasing and sturdy tubular torque wrench with rectangular cavity for industry and the trades

Features:

Classified according to DIN EN ISO 6789-2:2017 Type II Class A, incl. traceable test certificate, calibrated to a maximum permissible deviation of +/- 3 % and thus more precise than the +/- 4 % required by the standard

For controlled r.h and l.h. fastening

Sturdy, varnished tubular steel construction, with zinc-plated rectangular cavity (9x12 mm or 14x18mm) and high-grade plastic parts

Ergonomically shaped plastic handgrip with calibration aid

Change-over between Nm main scale and lbf·ft ancillary scale to avoid reading errors when setting the torque wante

With micrometre scale for main Nm scale for setting interim values

Release system triggers a tactile and audible signal

Ergonomic system for torque adjustment with reference symbol

Secured adjusting/setting system

Factory depth gauge: 17.5 mm (9x12 mm) or 25 mm (14x18 mm)

Operation only with end fittings with standardised depth gauges, otherwise inaccuracies can arise

Depending on the application, access is possible from the front (e.g. open-end fitting) or side (e.g. reversible ratchet and socket).
