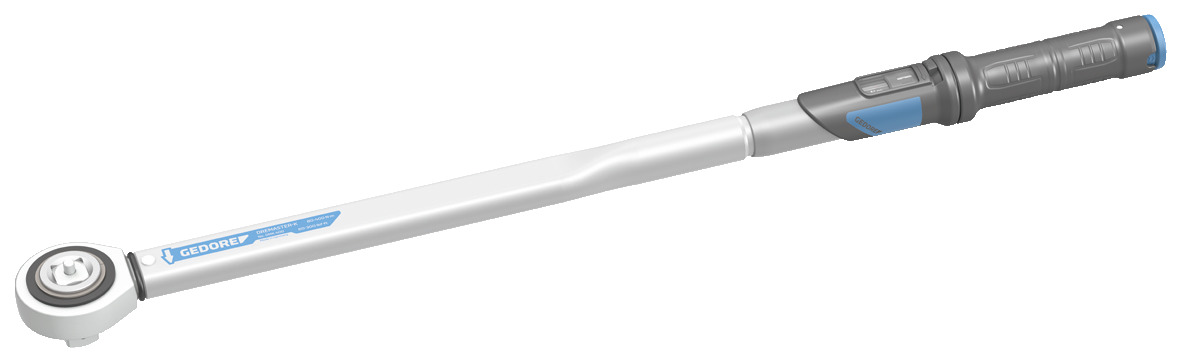

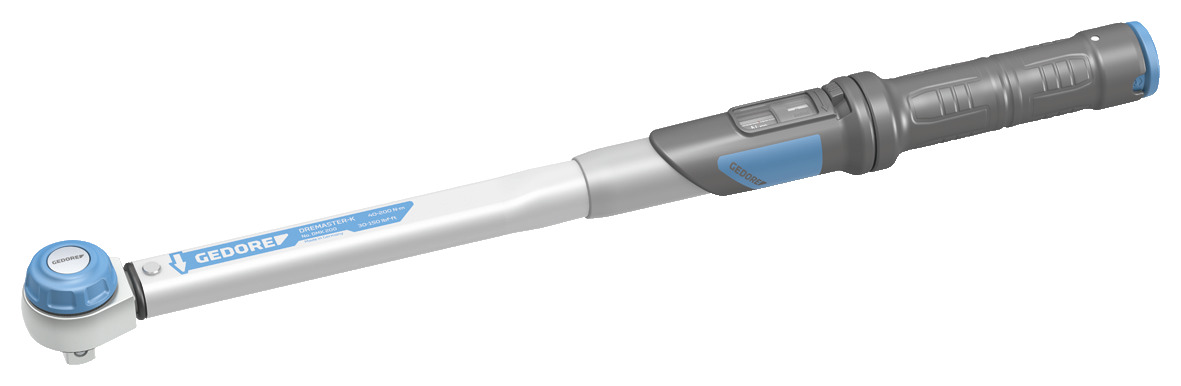

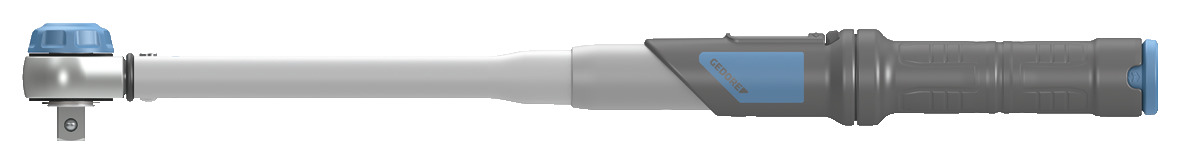

DMK Torque wrench DREMASTER® K

Use:

Controlled screw tightening in the range of 20 - 850 Nm / 15 - 630 lbf·ft (guide for screws M7-10.9 to M24-8.8. M30-5.6)

Adjustable, releasing and sturdy tubular torque wrench with integrated ratchet and with square drive for industry and the trades

Features:

Classified according to DIN EN ISO 6789-2:2017 Type II Class A, incl. traceable test certificate, calibrated to a maximum permissible deviation of +/- 3 % and thus more precise than the +/- 4 % required by the standard

For controlled r.h and l.h. fastening

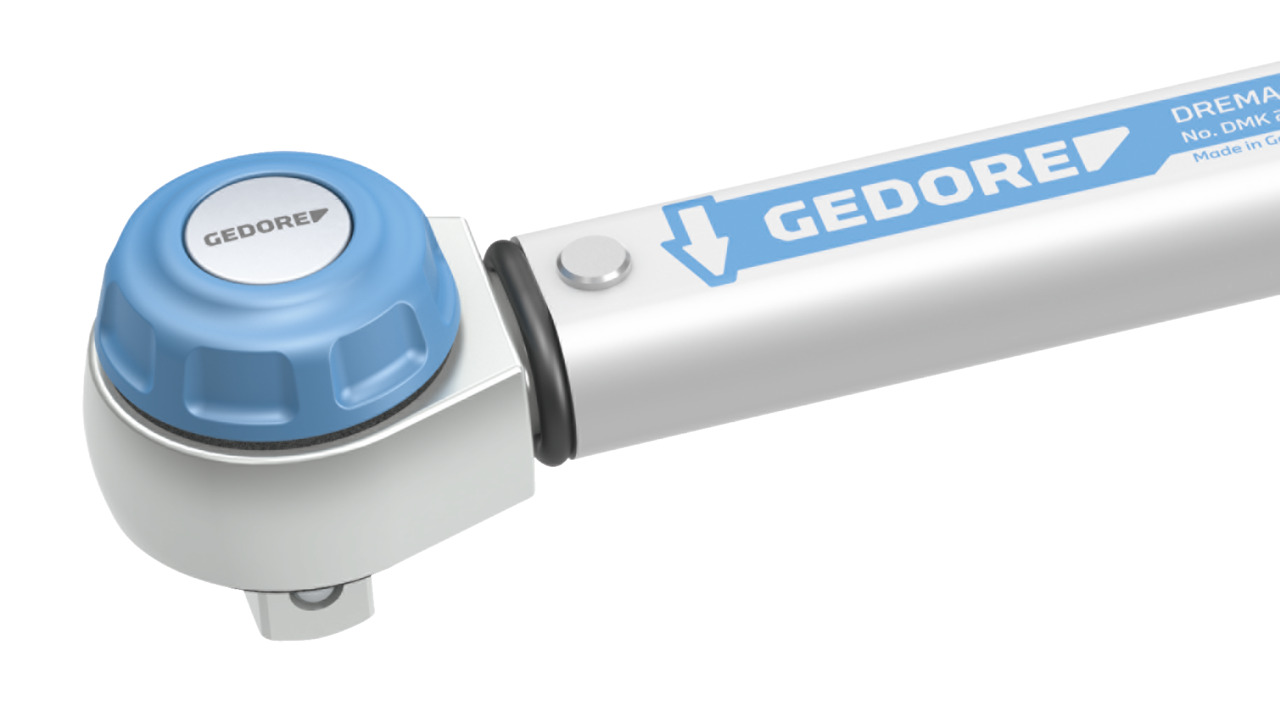

Models DMK: 1/2" mushroom head interchangeable square with push-button releasing and a ball-locking mechanism. From Model No. DMK 400 with 3/4" push-through square and a pin-locking mechanism

Sturdy, varnished tubular steel construction, with zinc-plated ratchet head and top-grade plastic parts

Ergonomically shaped plastic handgrip with calibration aid

Change-over between Nm main scale and lbf·ft ancillary scale to avoid reading errors when setting the torque wanted

With micrometre scale for main Nm scale for setting interim values

Release system triggers a tactile and audible signal

Ergonomic system for torque adjustment with reference symbol

Provision for rapid setting with hexagon allen key, not included

Secured adjusting/setting system
