Capture Hub

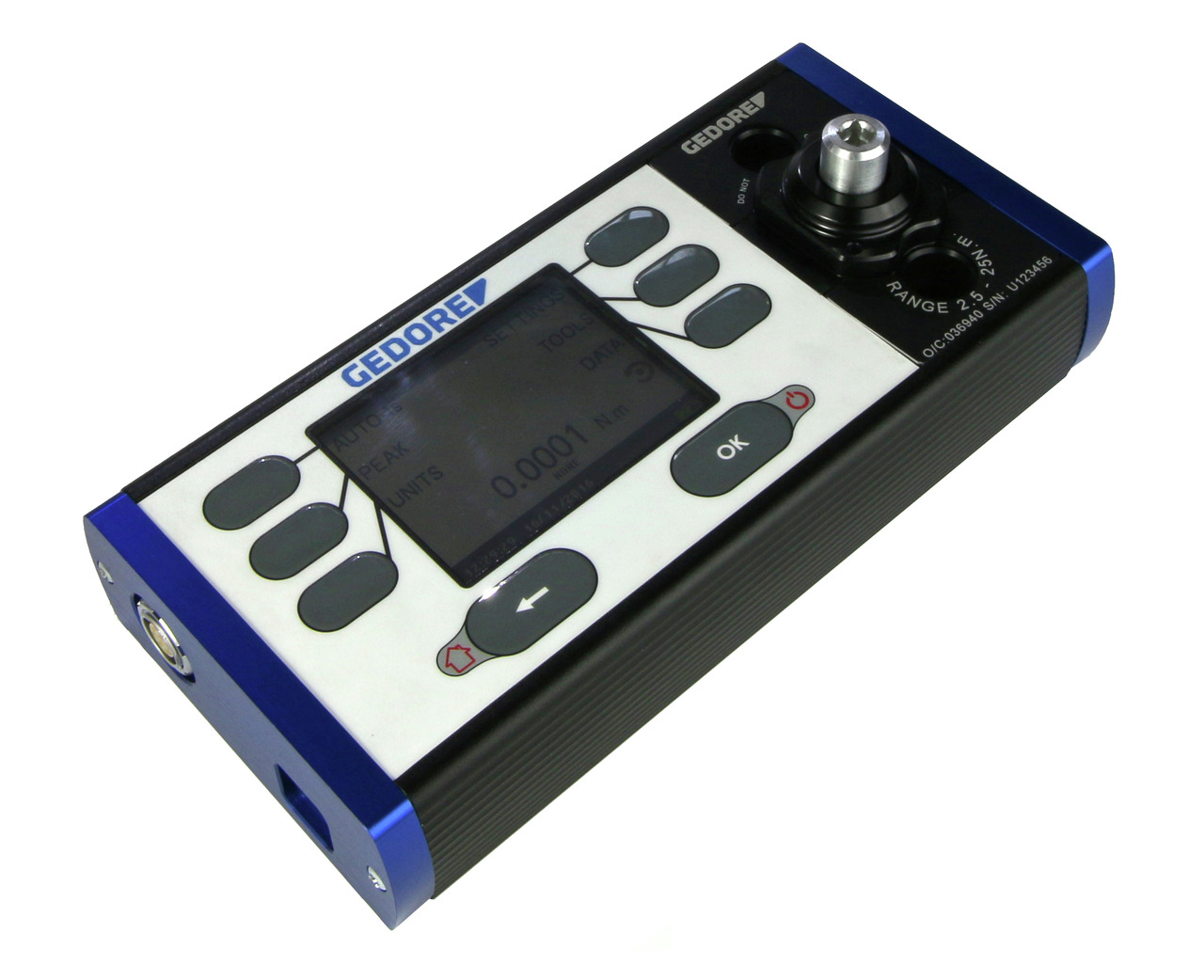

Digital torque tester for testing torque wrenches and torque screwdrivers

Light and robust thanks to the aluminum basic housing, horizontal and vertical mounting possible

4 models in the range of 0.1-25 Nm

With 1/4 "square socket (CH25 with 3/8")

Measuring tolerance +/- 1 % for all readings

4 measurement modes: sliding value display (track), breakpoint detection (first peak), peak value measurement (peak), screwdriver test

Including screw joint simulator attachment for testing screwdrivers

Switchable units Nm, cNm, lbf·ft, lbf·in, ozf·in

50 test sequences can be programmed

2000 measured values can be saved

Clear and high-contrast TFT display

Expandable by an additional capture sensor (connection socket available)

Powerful lithium-ion battery for Line Side mains-independent work

Data output and mains operation via USB connection

Optional: PC evaluation software "Capture Manager" (2908778)

Scope of delivery:

Free evaluation PC software included

Screw joint simulator

USB cable

Power supply unit with Euro plug

Operating instructions

Test certificate

Stable plastic case with inlay
