ATB Breaking torque wrench

Name: ATB Breaking torque wrench
SKU: 1065395
Availability: InStock

Model

SKU: 1065395 Categories: TORQUE TOOLS, TORQUE WRENCHES/ ACCESSORIES

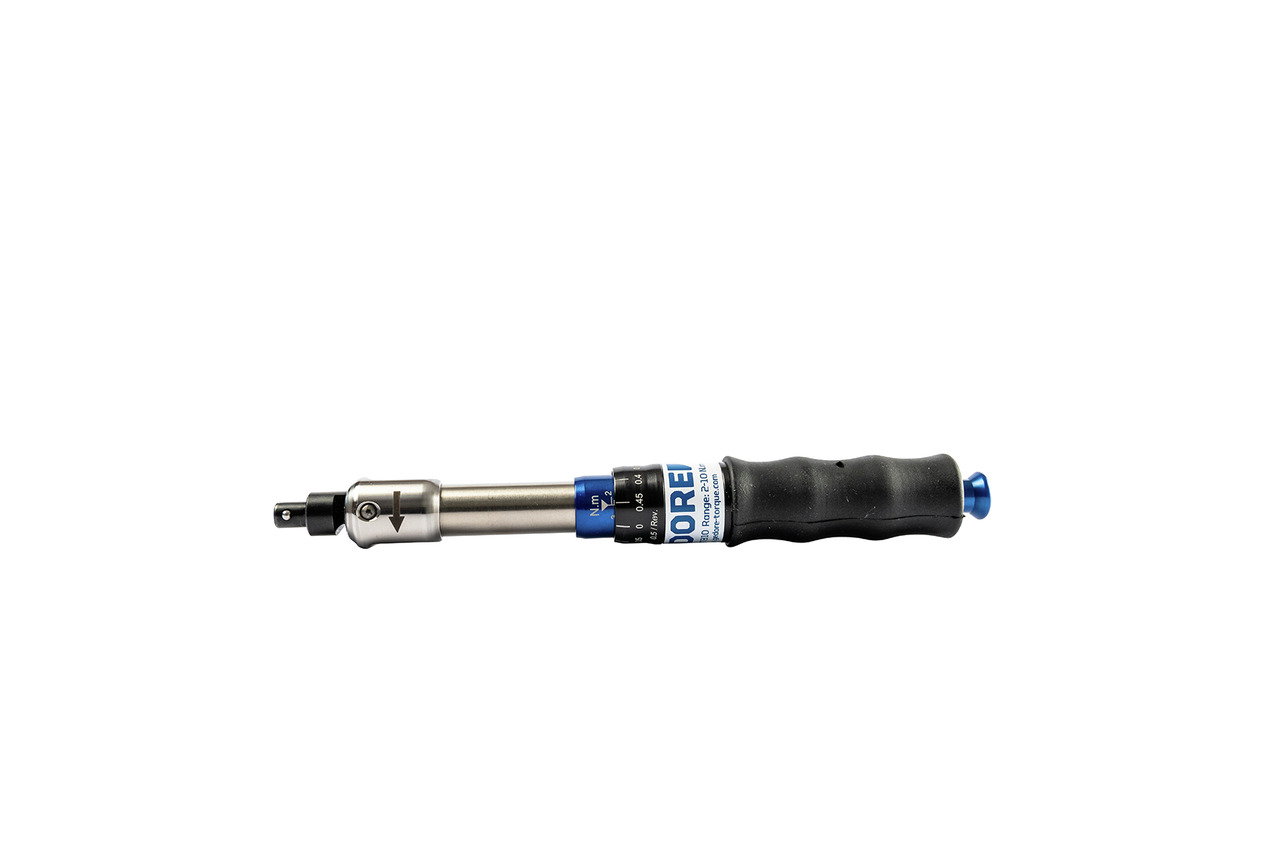

Type ATB 2.5 to ATB 10 with 8 mm pin

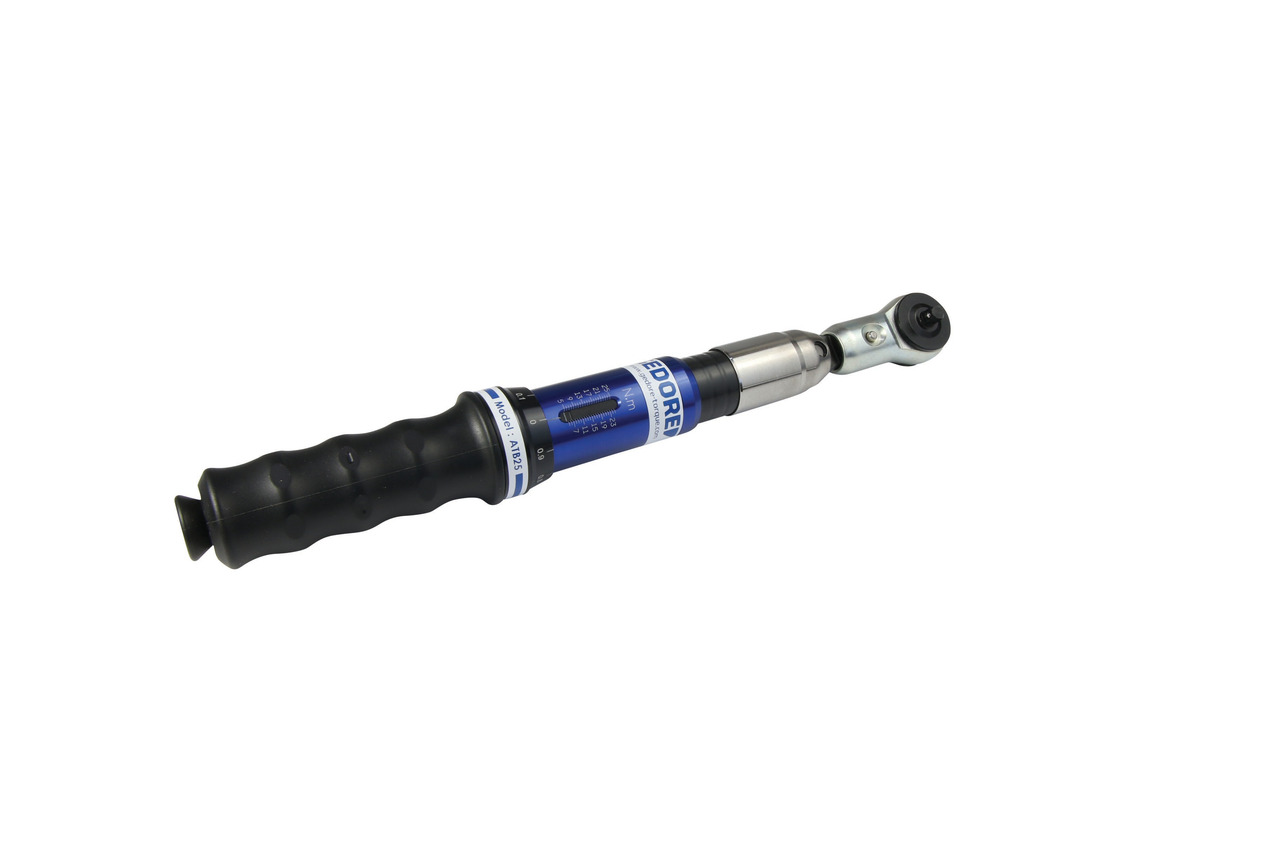

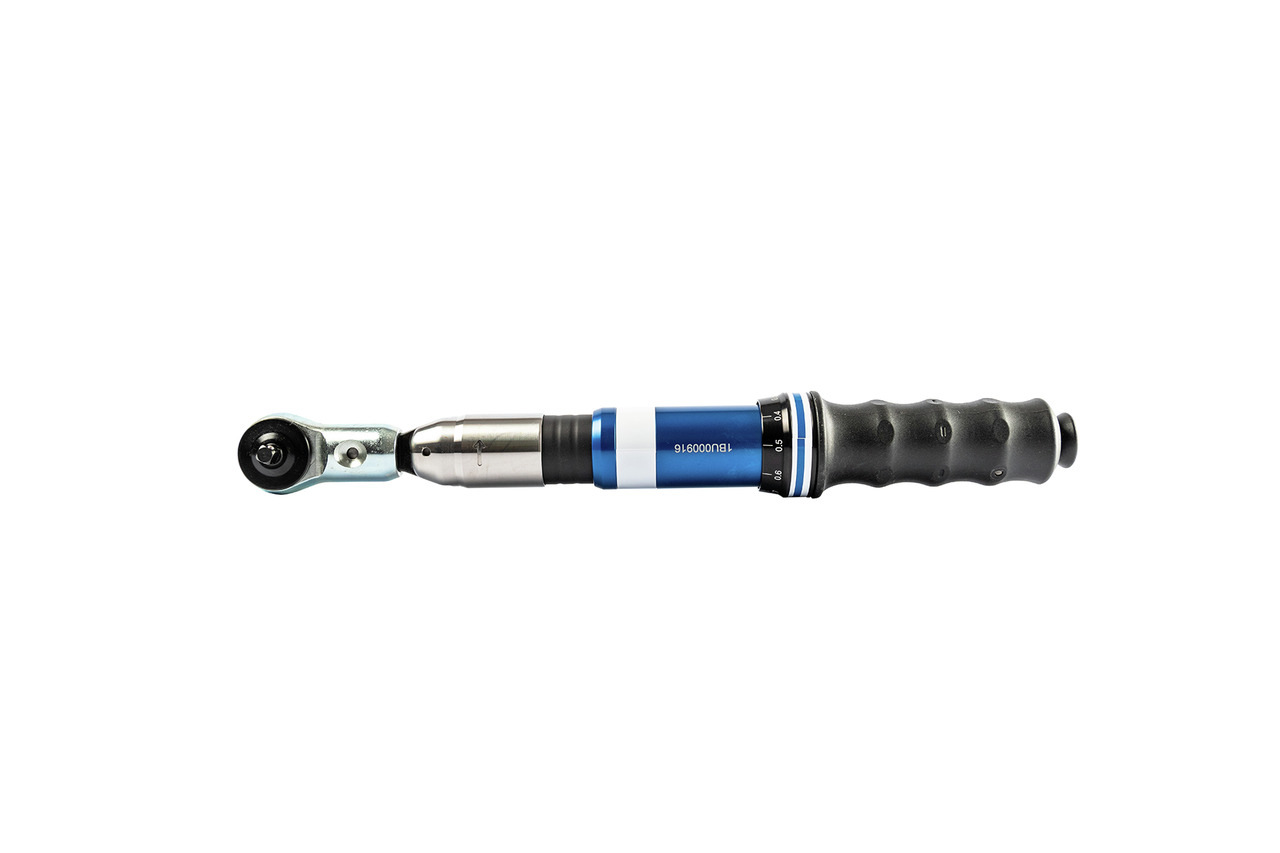

Type ATB 25 to ATB 100 with 16 mm pin incl. Insert ratchet

With micrometre scale, which allows quick and precise adjustment of the desired value

With adjuster lock that prevents accidental adjustment during use

Release accuracy: +/- 4% tolerance of the set value (ATB 2.5; ATB 5; ATB 10 +/- 6% tolerance)

Breaking of the handgrip by 20° when the pre-set torque value is achieved makes over-tightening unlikely

Classified according to DIN EN ISO 6789 Type II Class A

Contents (Qty of pieces):1
Article description 1:Breaking torque wrench mit Skala
Material:Tubular steel construction
Epa-/Esd-Model:0
Article description 2:0.5 - 100 Nm
Drive type/drive:Drive pin
REACH:compliant
Trigger mechanism:Long travel triggering
Precision +/-:+/- 4 %
Tightening direction:Left and right
Fixed setting:0
Test certificate:DIN EN ISO 6789-02:2017
Target groups:Automotive Industry Precision mechanics Military Mechanical engineering Service
Range of application:Assembly Series assembly Production Quality control Repair and maintenance Maintenance and repair Testing and trial departments
