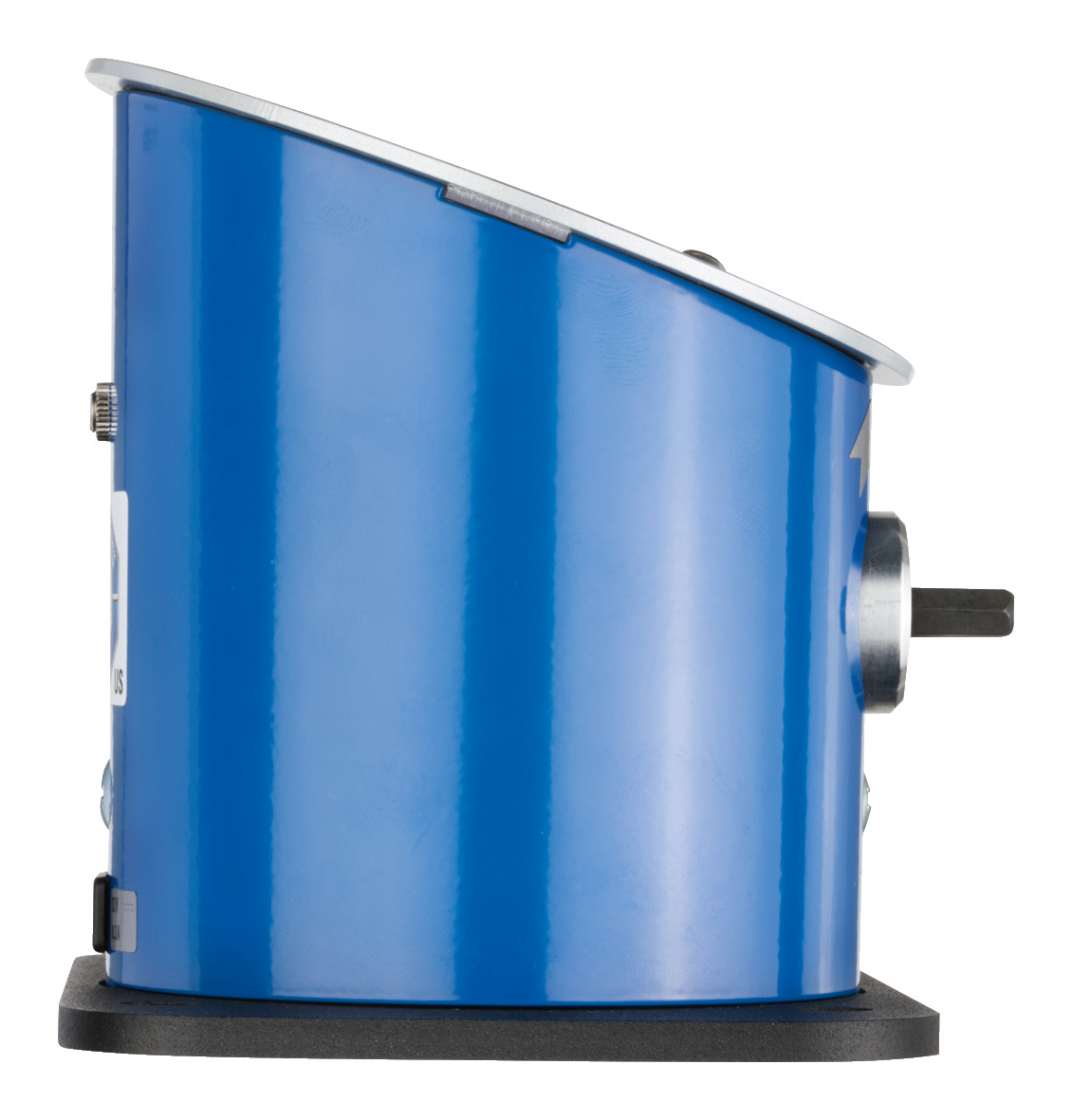

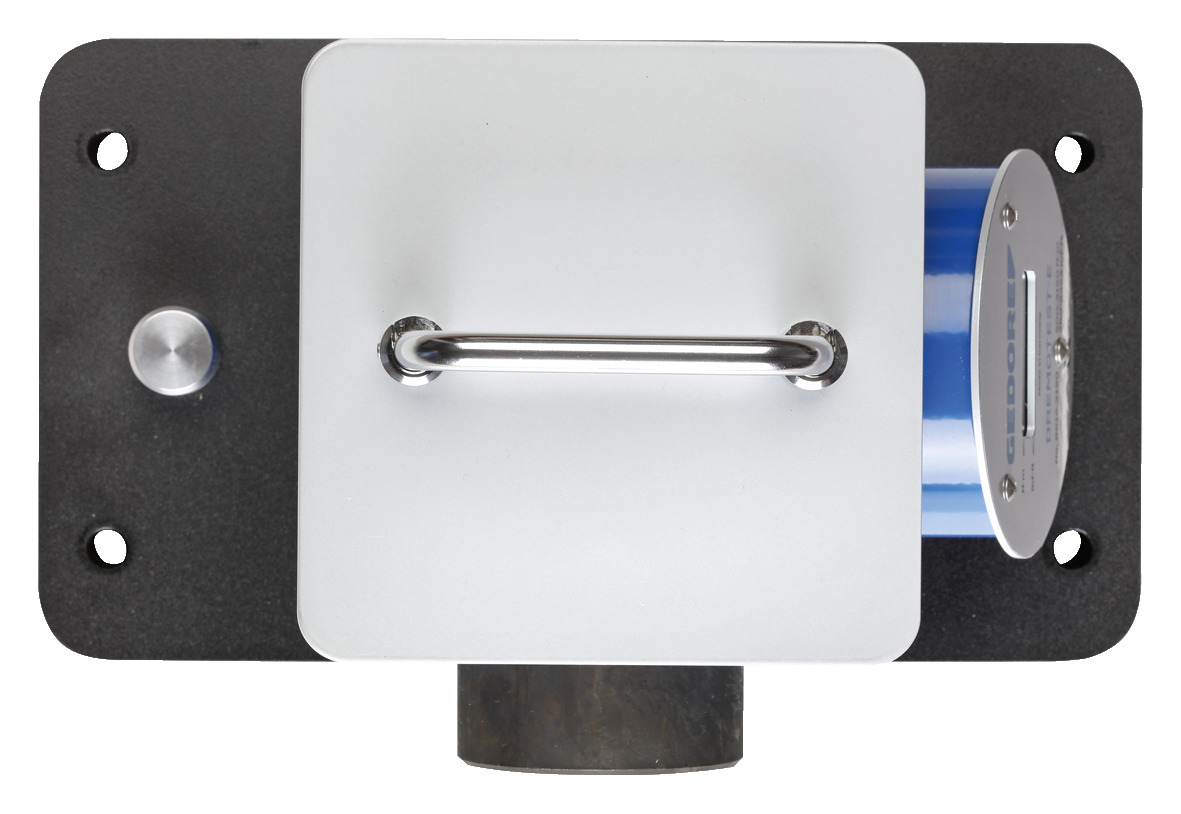

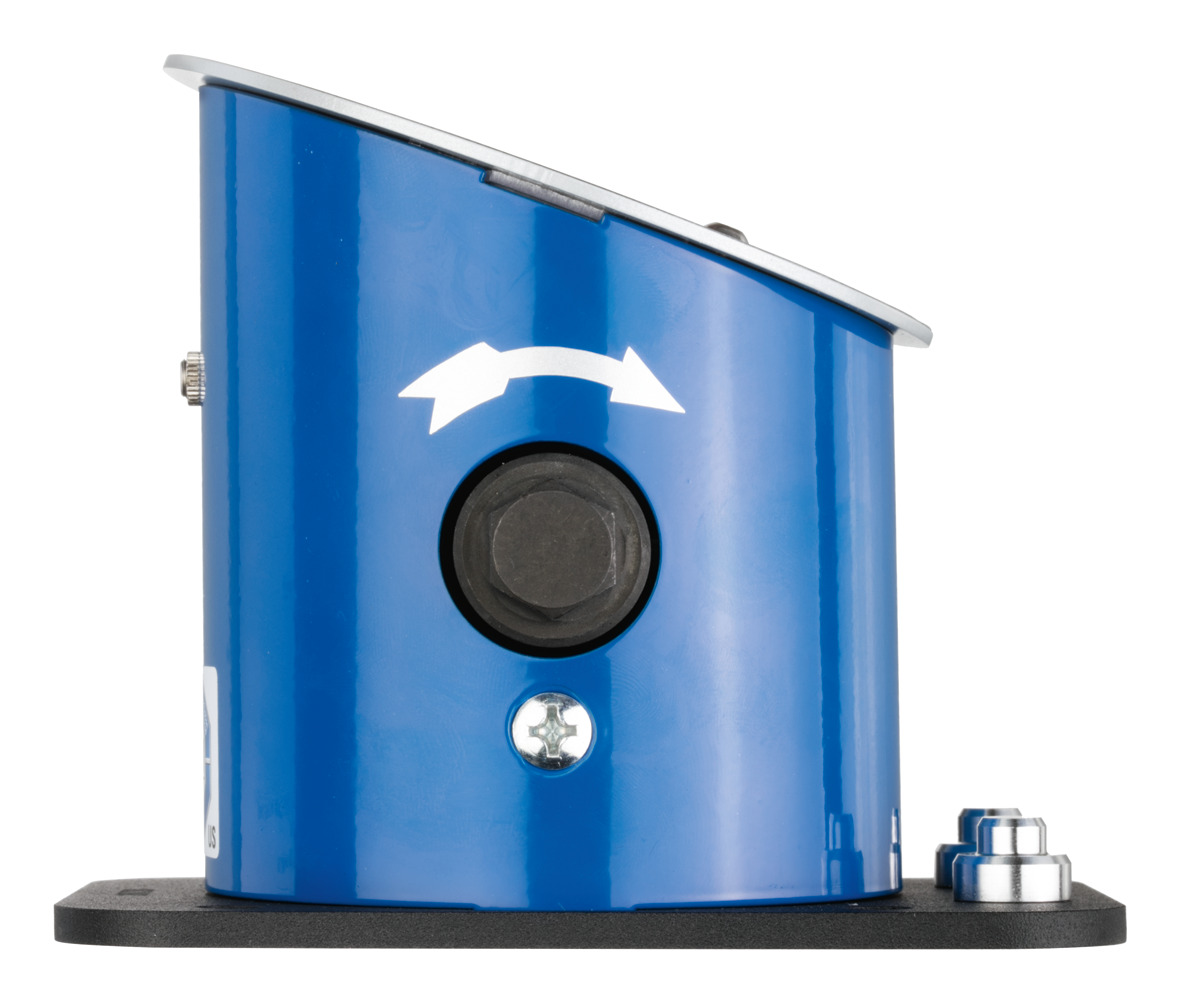

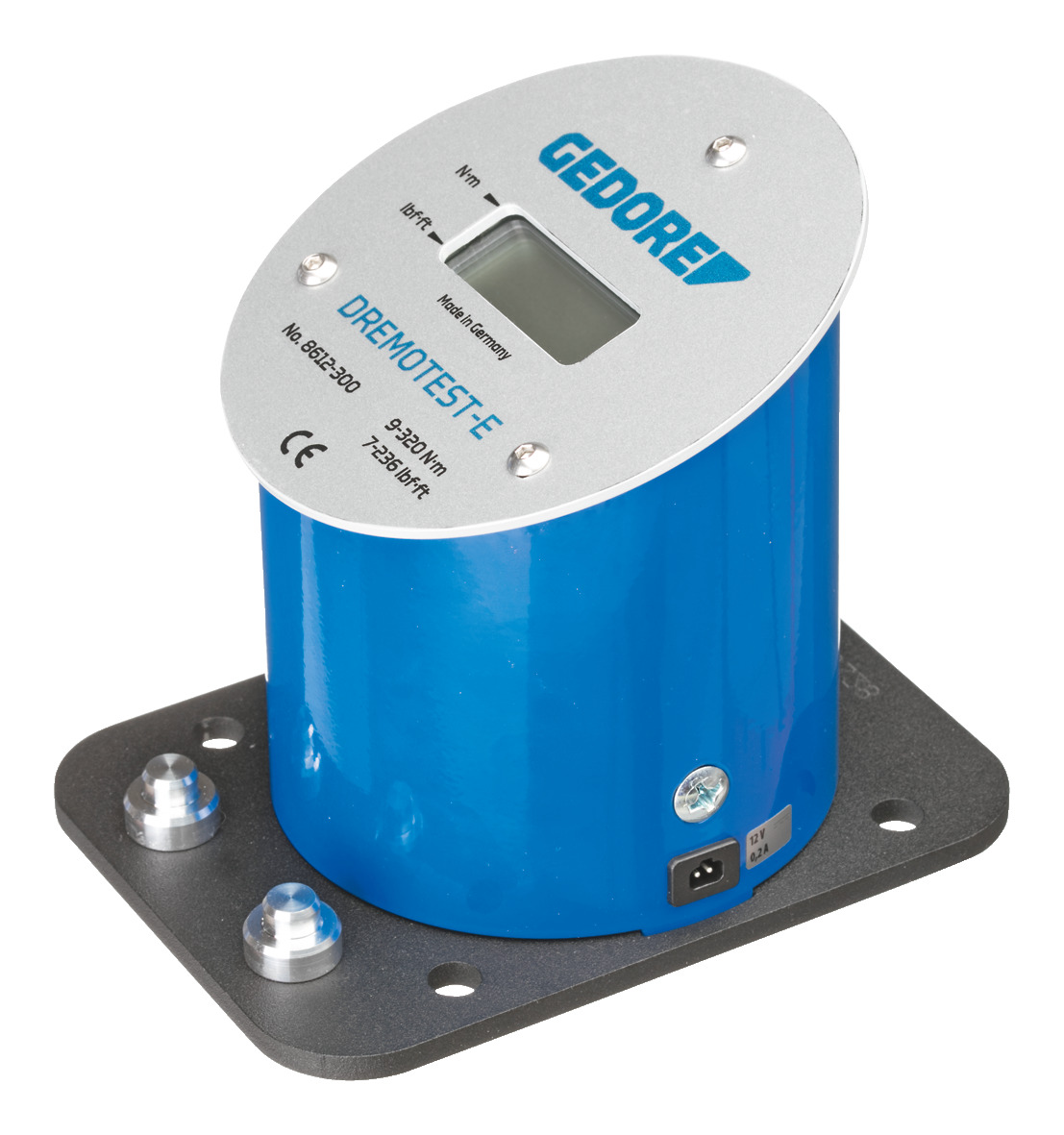

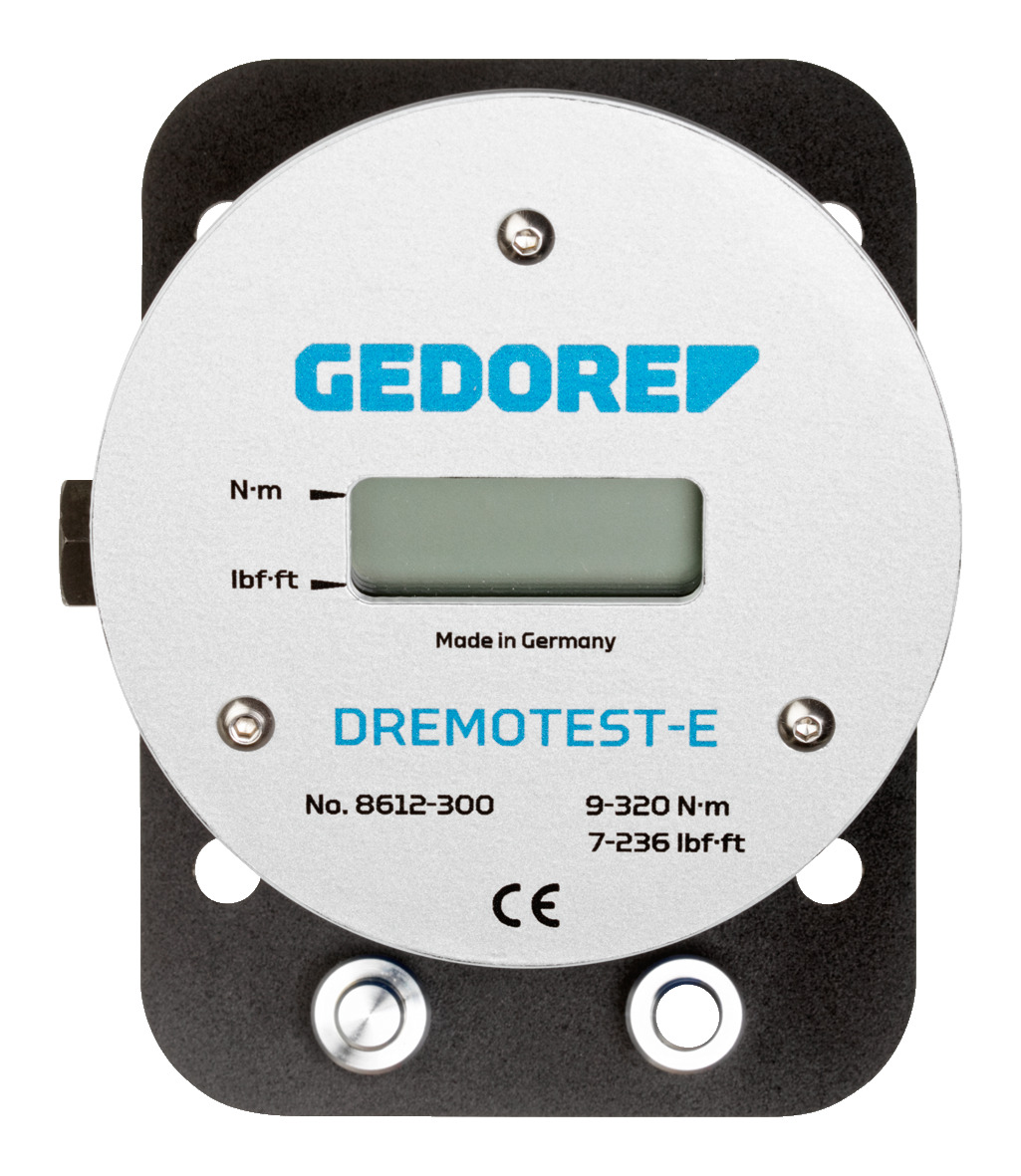

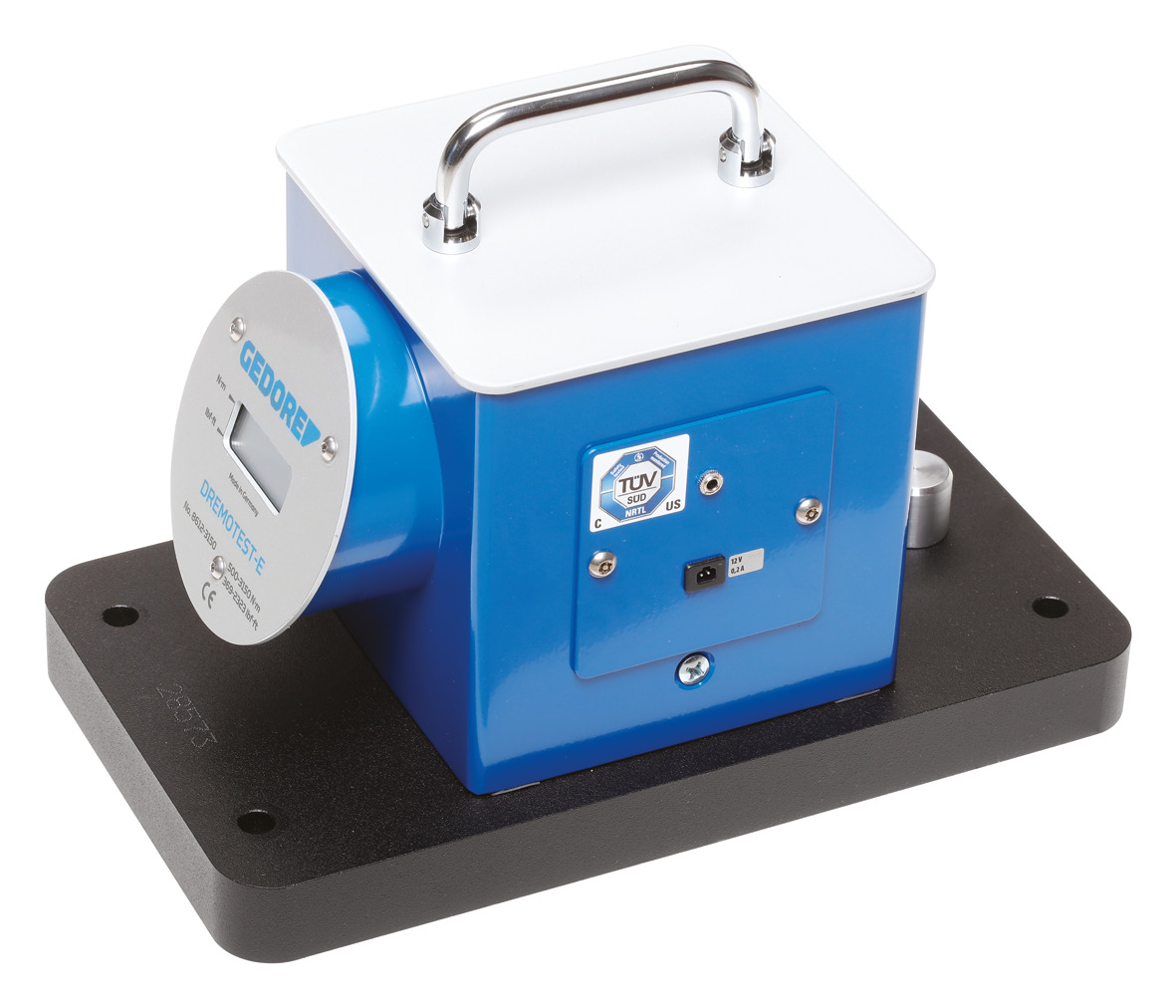

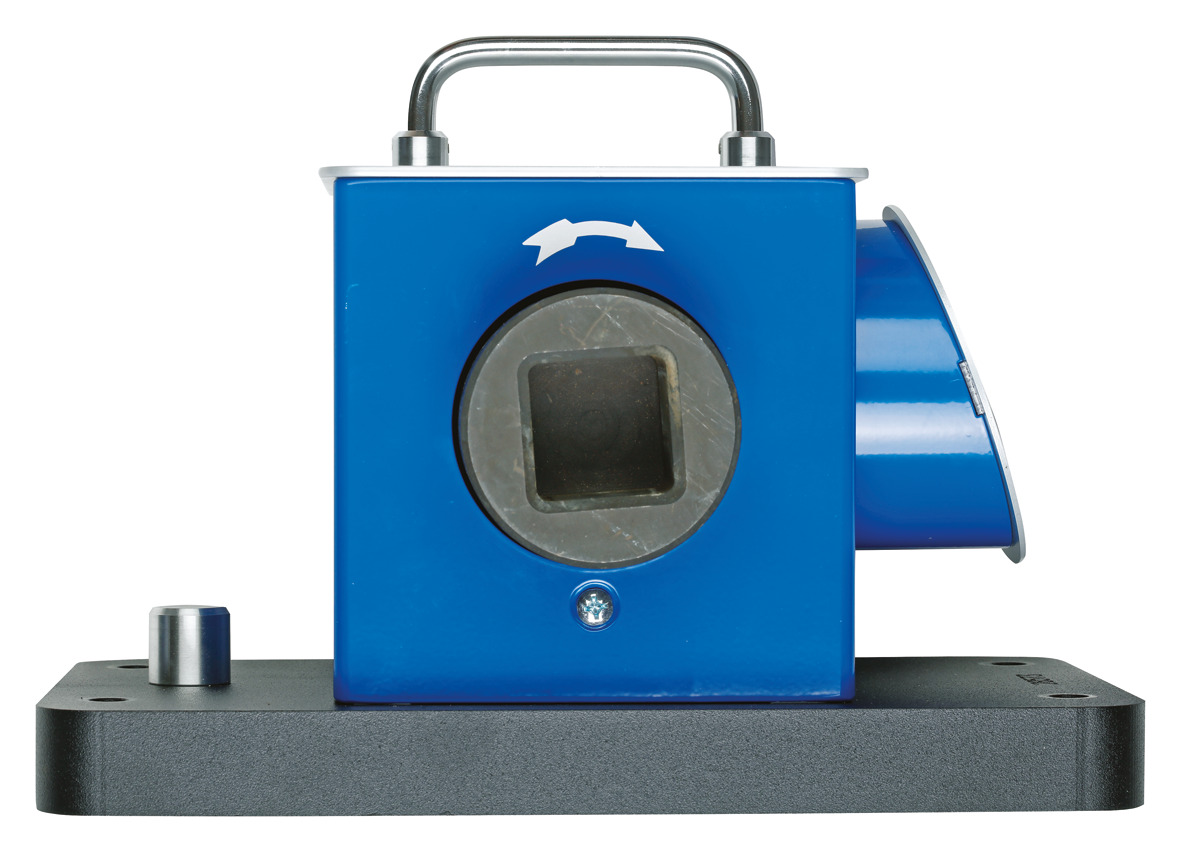

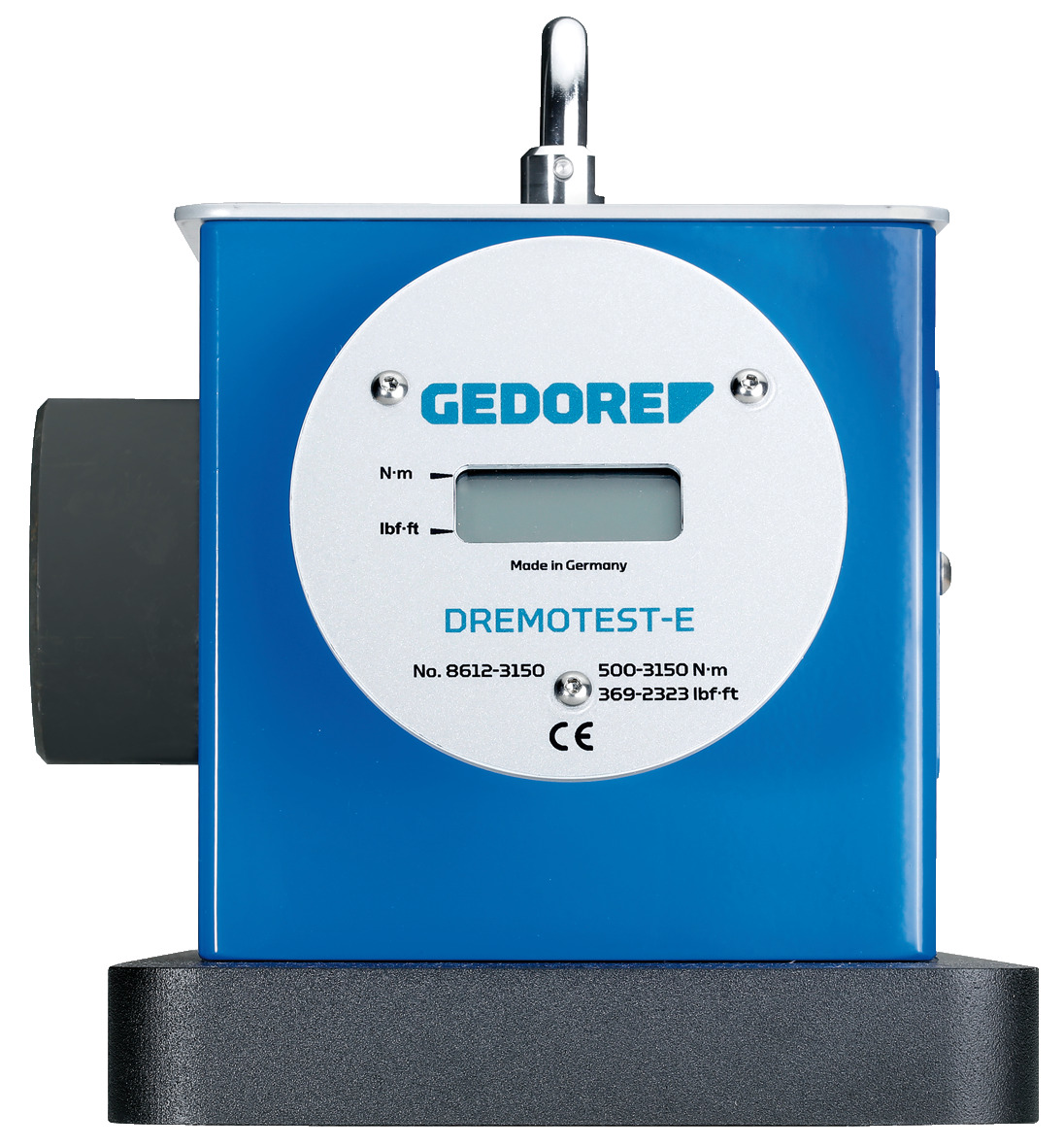

8612 Electronic torque tester DREMOTEST E 0,2–3150 N·m / 1,8 lbf·in — 2323 lbf·ft

For checking or adjusting right-hand torque wrenches and torque screwdrivers, ideal for checking fixed torque wrenches on the line

Easy to use, electronic test instrument with integrated torsion transducer (DMS)

5 models in the range 0,2 - 3150 Nm

5 models in the range from 0,2 to 3.150 N·m

With 1/4", 3/8", 1/2", 3/4", 1" square adaptor or bit adaptor 1/4" or 3/8" (depending on model)

High measurement accuracy: +/- 1% tolerance of reading, +/- 1 digit

1. peak value detection (first peak / breakpoint detection)

Autoreset

Switchable between Nm, lbf·ft and lbf·in

Serial interface RS232 for PC

Software for plausibility check on request - Software suite: (Code 3454630)

Scope of delivery:

Electronic torque tester

RS232 Cable

Power supply unit with EURO plug (UK, US, AUS-adaptor on request)

100 - 240 V, 50 - 60 Hz, max. 500 mA (note type plate)

2 socket wrench inserts (size and drive depending on model)

Adaptor for No. 8612-3150

Operating instructions

Packaging

Test certificate
