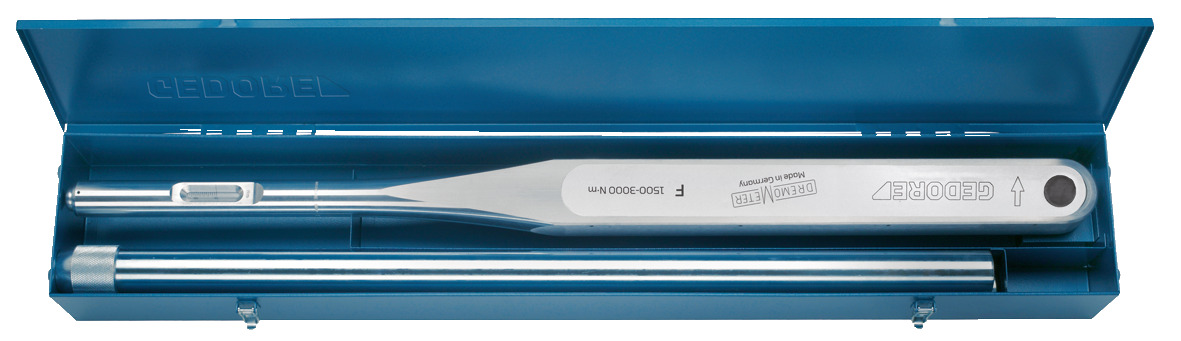

8572 F Torque wrench DREMOMETER
Specifications
About this product
Use:
Controlled screw tightening in the range of 1500 - 3000 Nm
For use in almost all industrial manufacturing areas
Features:
Classified according to DIN EN ISO 6789-2:2017 Type II Class A, incl. traceable test certificate, calibrated to a maximum permissible deviation of +/- 3 % and thus more precise than the +/- 4 % required by the standard
1.1/2" square drive with pin-locking mechanism DIN 3121 - F 40, ISO 1174
Automatic short-path actuation with tactile impulse and audible signal
Single scale with a scale graduation of 50 Nm
Technical advantage/Function:
Lightweight yet robust (as the housing is made of an aluminium alloy) and resilient, very workshop-friendly
No inaccuracies whether used with both hands or held away from the handle (as for standard torque wrenches)
Both the square drive and fulcrum are on an axis which ensures a high degree of user safety; can be extended to reduce the user's working load.
Extremely low wear attributable to reduced forces in a lever mechanism
Forged lever chain from our group own quality forge
Maximum precision even when subjected to extreme continuous use
Long life cycles and tool lives
Easy operation - fast and safe torque tightening
Easy adjustment thanks to attractive adjusting button secured against loss at the end of the handle
For controlled clockwise tightening
Information
- Weight [g]:15000 g
- Drive square inch:1.1/2"
- Contents (Qty of pieces):1
- Total length [mm]:1.037 mm
- Article description 1:Torque wrench DREMOMETER
- Torque (min.) [Nm]:1500 Nm
- Torque (max.) [Nm]:3000 Nm
- Torque range (min./max.) [Nm]:1500 Nm-3000 Nm
- Torque range (min./max.) [lbf·ft]:-
- Total width [mm]:70 mm
- Total height [mm]:40 mm
- Material:Aluminum alloy
- Drive connector square [metric]:40 mm
- Graduation:50
- Head height 1 [mm]:40 mm
- Width of head 1 [mm]:70,0 mm
- Distance housing - square drive:35 mm
- Length extension tube:925 mm
- Article description 2:1500-3000 Nm
- Drive type/drive:Single square rigid
- Torque wrench type:F
- Length of slip-on tube 2:745 mm
- Standard:ISO 1174 DIN 3121 F40
- REACH:compliant
- Calibration length:2309 mm
- Weight [kg]:15 kg
- Storage/Content:Box
- Trigger mechanism:Short path triggering
- Precision +/-:+/- 3 %
- Tightening direction:Right
- Fixed setting:0
- Test certificate:DIN EN ISO 6789-2:2017
- Target groups:Industry Construction and commercial vehicles Military Energy Mechanical engineering Utilities Service Oil & Gas
- Range of application:Assembly Maintenance and repair
