8564 E — 8569 EL Torque wrench DREMOMETER

Use:

Controlled screw tightening in the range of 750 - 2000 Nm

For use in almost all industrial manufacturing areas

Features:

Classified according to DIN EN ISO 6789-2:2017 Type II Class A, incl. traceable test certificate, calibrated to a maximum permissible deviation of +/- 3 % and thus more precise than the +/- 4 % required by the standard

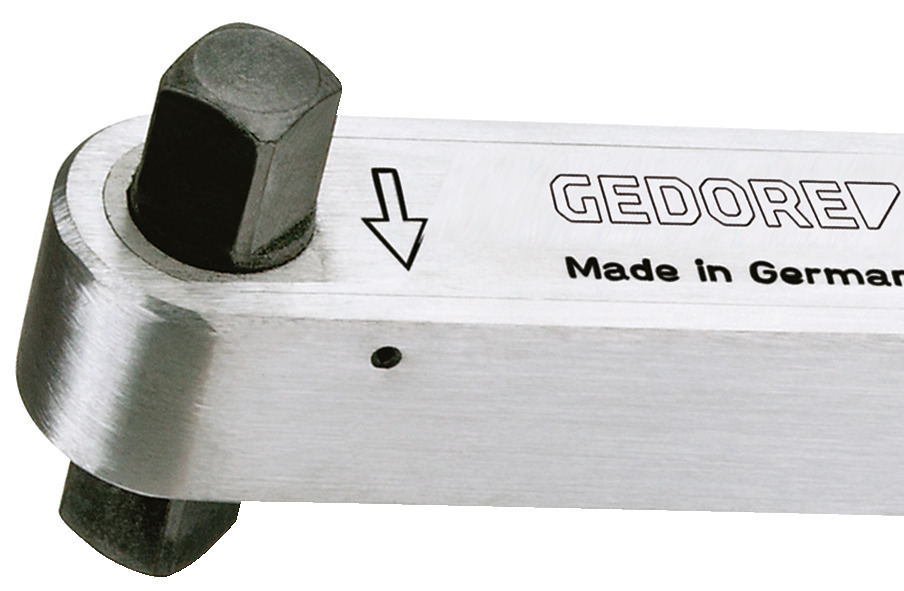

1" square drive with pin-locking mechanism DIN 3120 - B 25, ISO 1174

Automatic short-path actuation with tactile impulse and audible signal

Single scale with a scale graduation of 50 Nm

Technical advantage/Function:

Lightweight yet robust (as the housing is made of an aluminium alloy) and resilient, very workshop-friendly

No inaccuracies whether used with both hands or held away from the handle (as for standard torque wrenches)

Both the square drive and fulcrum are on an axis which ensures a high degree of user safety; can be extended to reduce the user's working load.

Extremely low wear attributable to reduced forces in a lever mechanism

Forged lever chain from our group own quality forge

Maximum precision even when subjected to extreme continuous use

Long life cycles and tool lives

Easy operation - fast and safe torque tightening

Easy adjustment thanks to attractive adjusting button secured against loss at the end of the handle

Single- and double-square drive for controlled bi-directional tightening
