8563-N-05 Torque wrench DREMOMETER DNR Set 3/4″

In stock

SKU: 1065208 Category:
8563-N-05 Torque wrench DREMOMETER DNR Set 3/4"
8563-N-05 Torque wrench DREMOMETER DNR Set 3/4" - Image 2
8563-N-05 Torque wrench DREMOMETER DNR Set 3/4" - Image 3
8563-N-05 Torque wrench DREMOMETER DNR Set 3/4" - Image 4
8563-N-05 Torque wrench DREMOMETER DNR Set 3/4" - Image 5
8563-N-05 Torque wrench DREMOMETER DNR Set 3/4" - Image 6
8563-N-05 Torque wrench DREMOMETER DNR Set 3/4" - Image 7
8563-N-05 Torque wrench DREMOMETER DNR Set 3/4" - Image 8
8563-N-05 Torque wrench DREMOMETER DNR Set 3/4" - Image 9
8563-N-05 Torque wrench DREMOMETER DNR Set 3/4" - Image 10

Specifications

Height (cm)3.5
Length (cm)81.2
Width (cm)4.5
Dimensions81.2 × 4.5 × 3.5 cm
Weight3.005 kg
Request Info

About this product

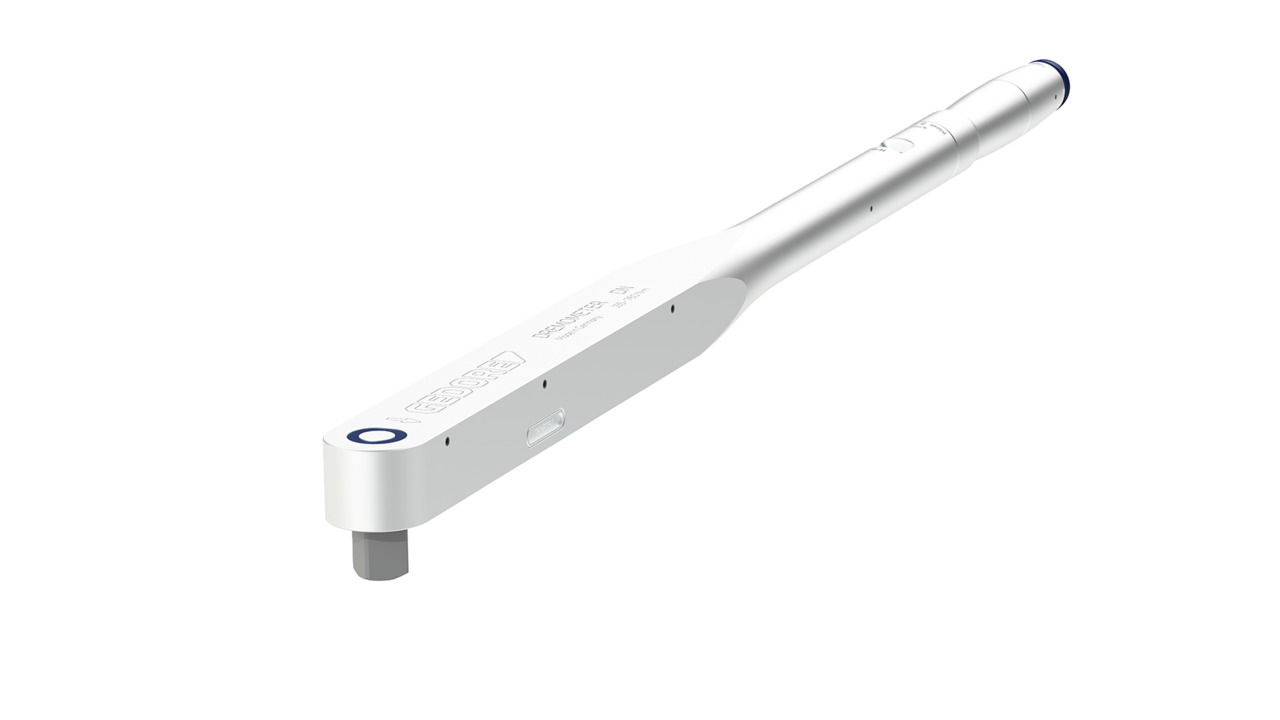

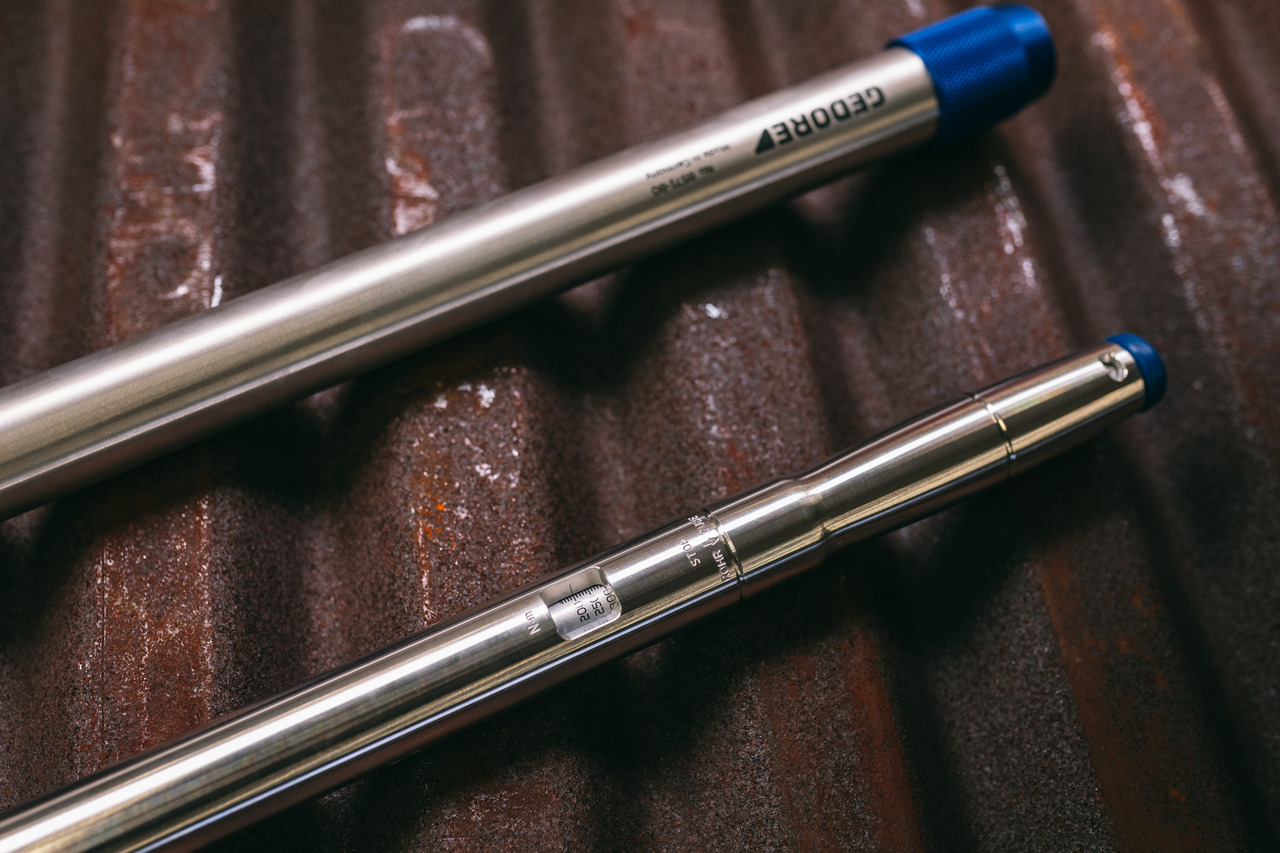

Torque wrench 155-760 Nm tightening range with test certificate; with extension tube

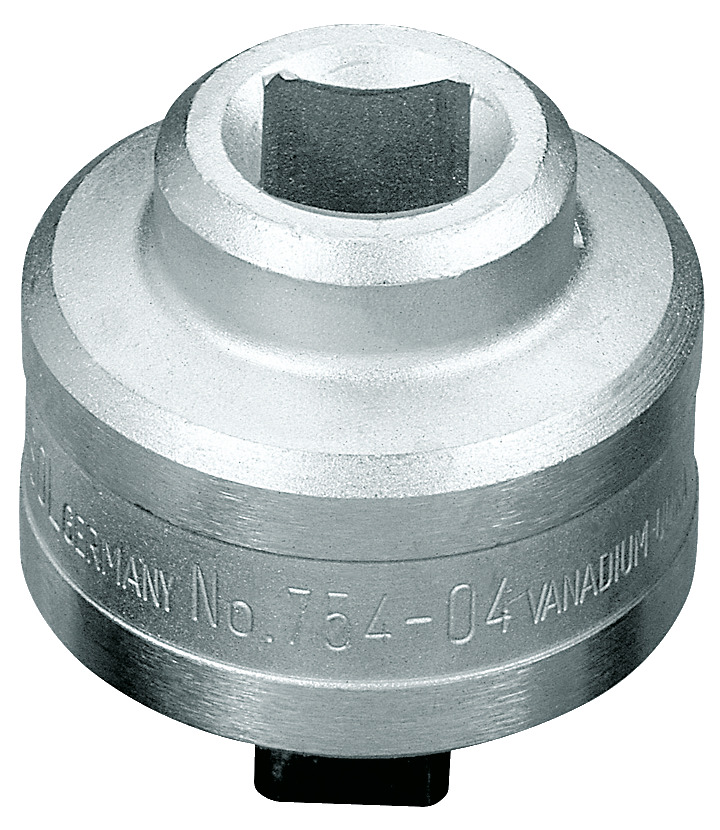

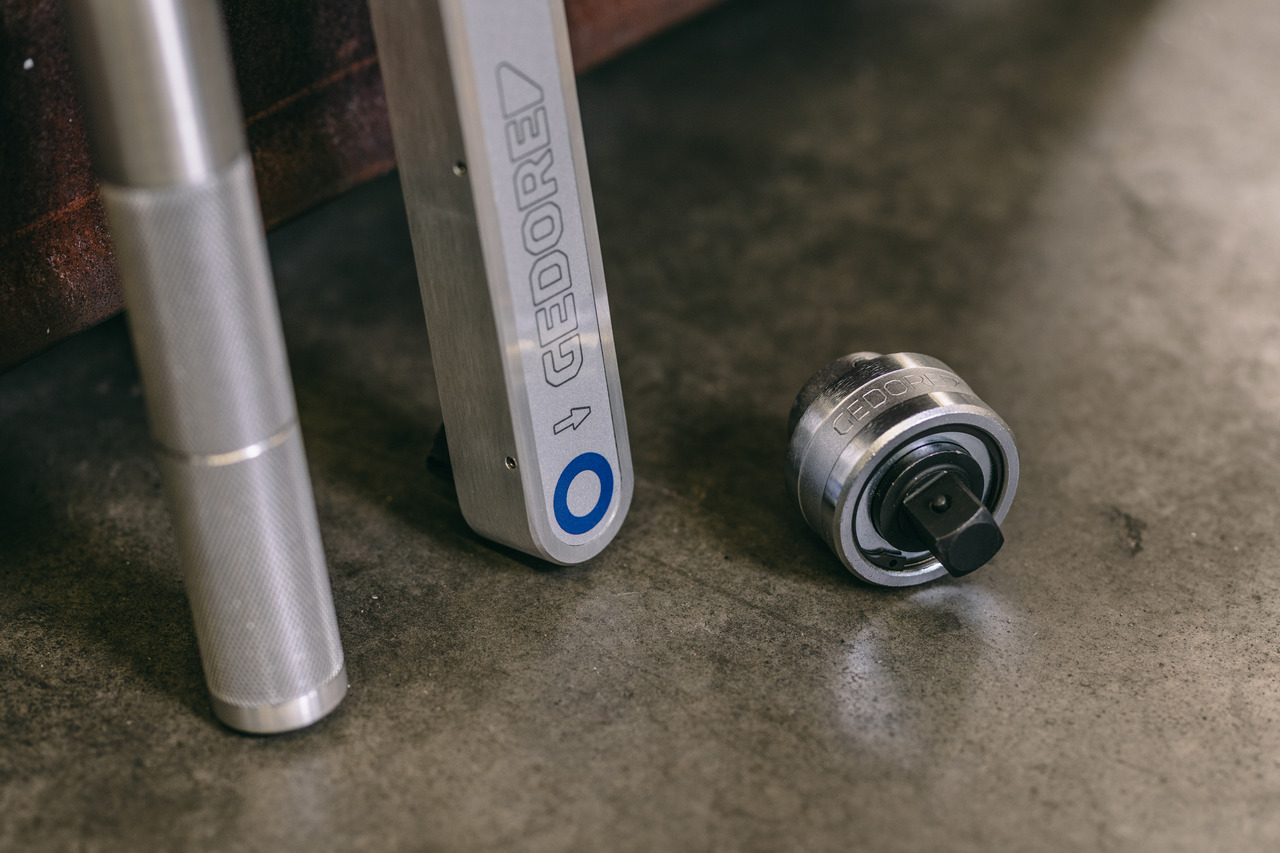

Controlled clockwise tightening; 3/4" output drive; plus clockwise rotating 3/4" add-on ratchet

Classified as per DIN EN ISO 6789-2:2017; adjusted to a maximum permissible +/-3% deviation and thus with a greater precision than the standard-stipulated +/-4%

Vernier scale - resolution 1.0 Nm

Made in Germany

Information

  • Weight [g]:3005 g
  • Drive square inch:3/4"
  • Contents (Qty of pieces):1
  • Total length [mm]:812 mm
  • Article description 1:3/4" Torque wrench DREMOMETER DNR set
  • Torque (min.) [Nm]:155 Nm
  • Torque (max.) [Nm]:760 Nm
  • Total width [mm]:45 mm
  • Total height [mm]:35 mm
  • Drive connector square [metric]:40 mm
  • Graduation:10
  • Distance housing - square drive:22,5 mm
  • Article description 2:155-760 Nm
  • Drive type/drive:Single square
  • vernier Nm:1 Nm
  • REACH:compliant
  • Weight [kg]:3,005 kg
  • Precision +/-:+/- 3 %
  • Tightening direction:Right
  • Fixed setting:0
  • Test certificate:DIN EN ISO 6789-2:2017
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
