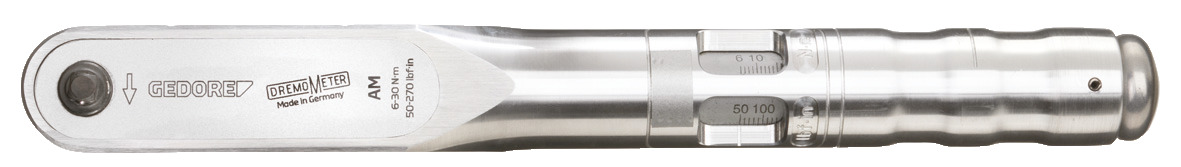

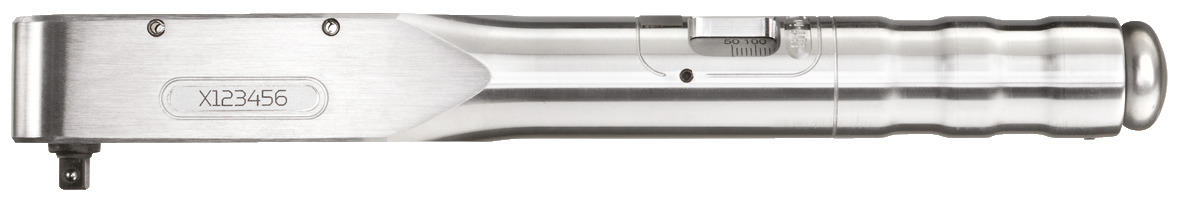

8554 AM — 8559 AML Torque wrench
Specifications
About this product
Use:
Controlled screw tightening in the range of 6 - 30 Nm / 50 - 270 lbf·in
Features:
Classified according to DIN EN ISO 6789-2:2017 Type II Class A, incl. traceable test certificate, calibrated to a maximum permissible deviation of +/- 3 % and thus more precise than the +/- 4 % required by the standard
1/4" square drive with ball locking device as per DIN 3120 - A 6.3 ISO 1174
Automatic short-path actuation with tactile impulse and audible signal
Dual scale with a scale graduation of 1 Nm and 10 lbf·in
Technical advantage/Function:
Lightweight yet robust (as the housing is made of an aluminium alloy) and resilient, very workshop-friendly
No inaccuracies whether used with both hands or held away from the handle (as for standard torque wrenches)
Both the square drive and fulcrum are on an axis which ensures a high degree of user safety; can be extended to reduce the user's working load.
Extremely low wear attributable to reduced forces in a lever mechanism
Forged lever chain from our group own quality forge
Maximum precision even when subjected to extreme continuous use
Long life cycles and tool lives
Easy operation - fast and safe torque tightening
Easy adjustment thanks to attractive adjusting button secured against loss at the end of the handle
Information
- Weight [g]:551 g
- Drive square inch:1/4"
- Contents (Qty of pieces):1
- Total length [mm]:268 mm
- Article description 1:Torque wrench DREMOMETER
- Torque (min.) [Nm]:6 Nm
- Torque (max.) [Nm]:30 Nm
- Torque range (min./max.) [Nm]:6 Nm-30 Nm
- Torque range (min./max.) [lbf·ft]:-
- Total width [mm]:30 mm
- Total height [mm]:40,5 mm
- Drive connector square [metric]:6,3 mm
- Graduation:1
- Head height 1 [mm]:30 mm
- Width of head 1 [mm]:30,0 mm
- Distance housing - square drive:15 mm
- Article description 2:6-30 Nm / 50-270 lbf·in
- Drive type/drive:Single square rigid
- Torque (max.) [lbf·in]:50 lbf·in
- Torque (min.) [lbf·in]:270 lbf·in
- Torque wrench type:AM
- REACH:compliant
- Calibration length:206 mm
- Weight [kg]:0,551 kg
- Graduation [lbf·in]:10 lbf·in
- Trigger mechanism:Short path triggering
- Precision +/-:+/- 3 %
- Tightening direction:Right
- Fixed setting:0
- Scale division [Nm]:1 Nm
- Target groups:Automotive Electronics industry Precision mechanics Military Energy Mechanical engineering Workshop Service Agriculture Control cabinet construction
- Range of application:Assembly Series assembly Production Maintenance and repair
