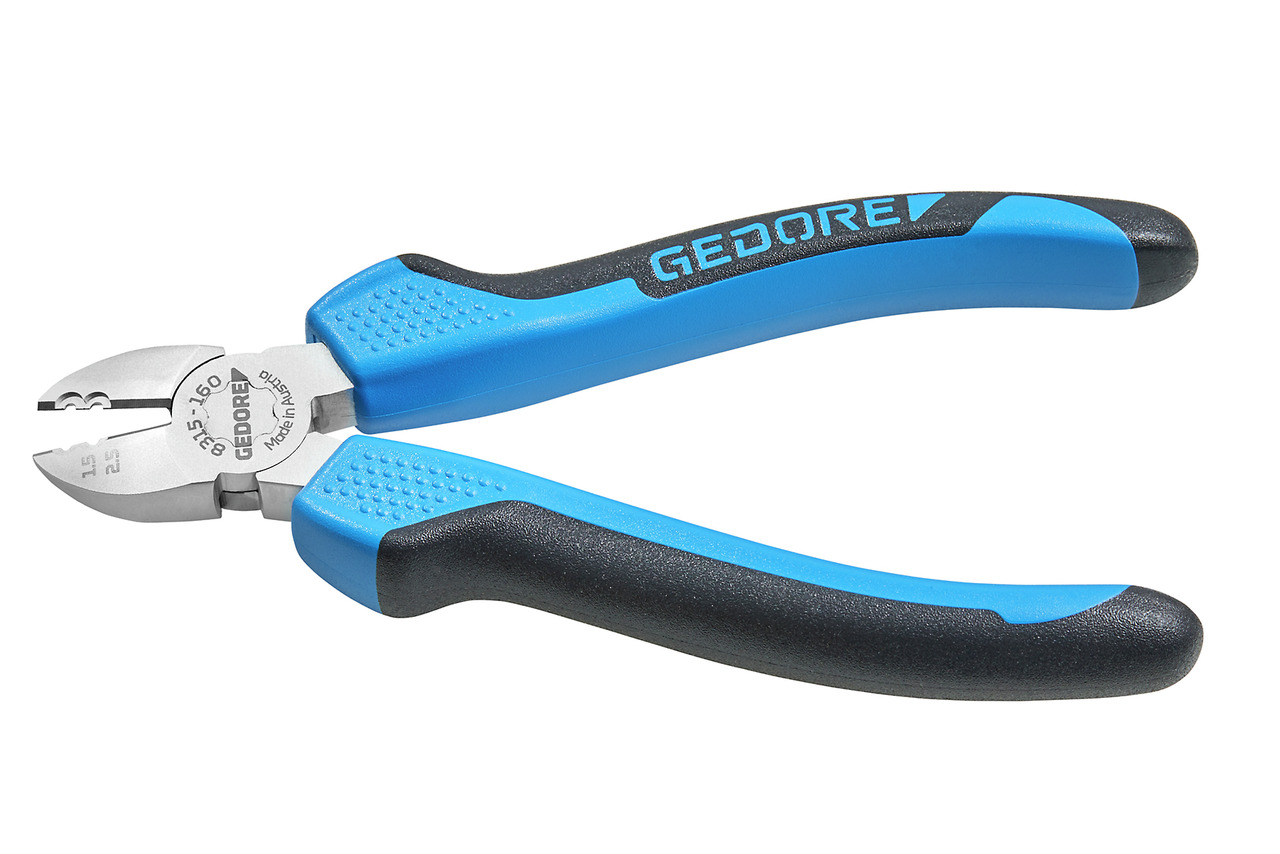

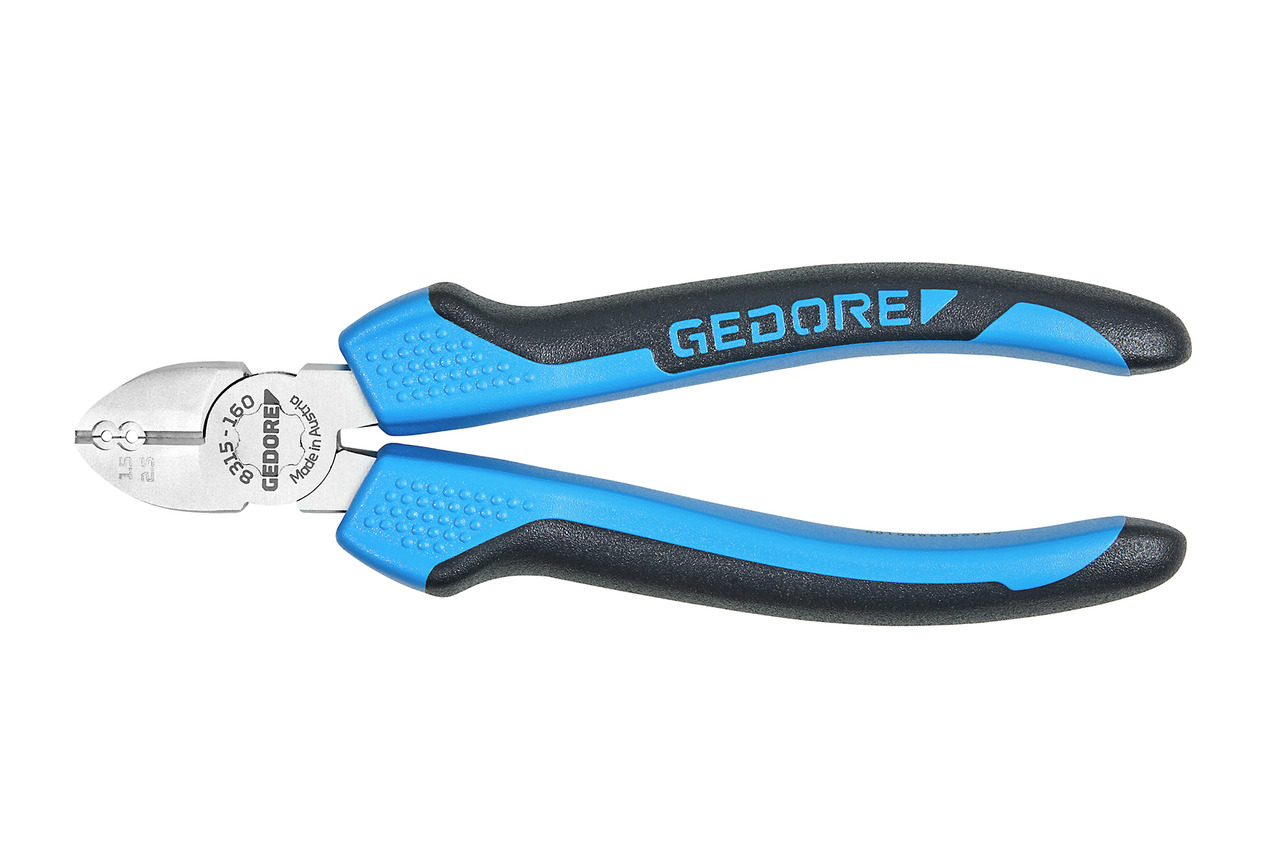

8315 Electricians’ side cutter
Specifications
About this product

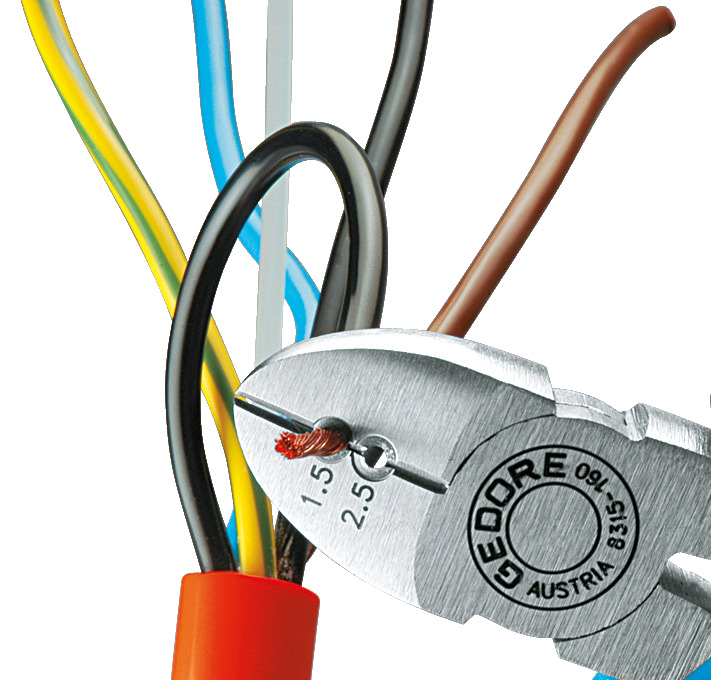

Double-function electriciansÂ’ side cutters: for cutting and stripping wire
Stripping holes for solid and stranded conductors with 1.5 mm² and 2.5 mm² conductor cross-section
Induction-hardened precision cutting edges, hardness 61 - 63 HRC
GEDORE special hardened and tempered steel, drop-forged, oil-hardened and annealed
JC = chrome-plated, with 2-component handle covers
TC = chrome-plated, with blue dipped handles
Information
- Weight [g]:235 g
- Contents (Qty of pieces):1
- Total length [mm]:160 mm
- Hardness of cutting edge:61 - 63 HRC
- Article description 1:Electricians' side cutter
- Material:Heat-treated steel
- Head height 1 [mm]:19 mm
- Width of head 1 [mm]:22,0 mm
- Cutting edge length [mm]:19 mm
- Head thickness [mm] T1:10,0 mm
- Thickness of point:1,0 mm
- Handle design:2C
- Wire/cable diameter:1,5 und 2,5 mm²
- Surface:chrome-plated
- REACH:compliant
- Weight [kg]:0,235 kg
- Handle colour:blue
- Design non-sparking:No
- Opening spring present:0
- Bevel:with
- ESD Yes/No:0
- Hardening process:Induction hardened
- Blade shape:with facet
- with cutting edge:1
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
