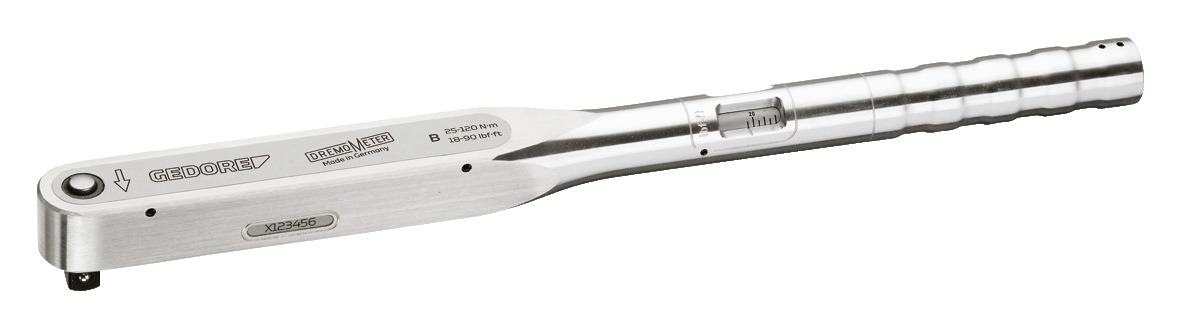

7554 AM A+S — 7572 F A+S Torque wrench DREMOMETER A+S

Technical advantage/Function:

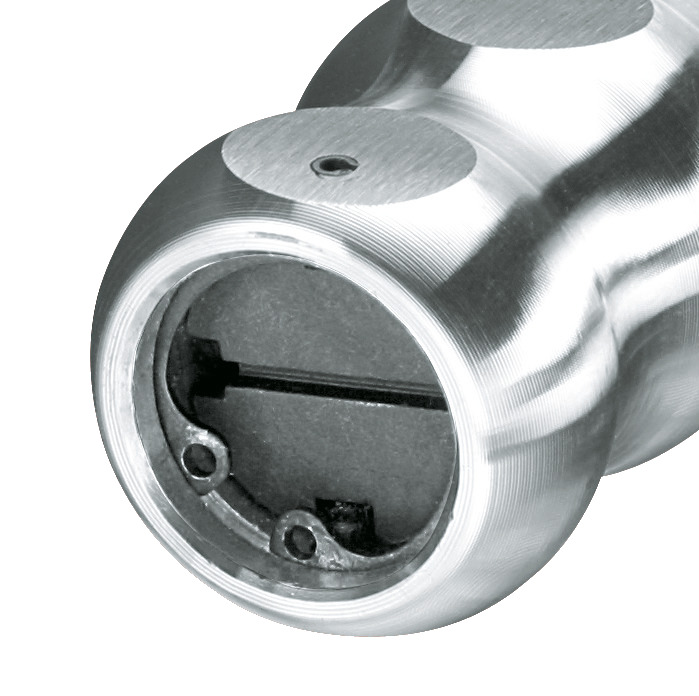

Pre-set value locking and safety device (A+S) eliminates the possibility of unintentional or manipulated adjustment, thereby representing more process reliability of the user

Classified according to DIN EN ISO 6789-2:2017 Type II Class A, incl. traceable test certificate, calibrated to a maximum permissible deviation of +/- 3 % and thus more precise than the +/- 4 % required by the standard

Lightweight yet robust (as the housing is made of an aluminium alloy) and resilient, very workshop-friendly

No inaccuracies whether used with both hands or held away from the handle (as for standard torque wrenches)

Both the square drive and fulcrum are on an axis which ensures a high degree of user safety; can be extended to reduce the user's working load.

Extremely low wear attributable to reduced forces in a lever mechanism

Forged lever chain from our group own quality forge

Maximum precision even when subjected to extreme continuous use

Long life cycles and tool lives

Easy operation - fast and safe torque tightening

Single- and double-square drive for controlled bi-directional tightening

Use:

Controlled screw tightening in the range of 6 - 3000 Nm

For use in almost all industrial manufacturing areas

Features:

With certificate acc. to DIN EN ISO 6789, traceable via in-house DAkkS laboratory to national standards

Automatic short-path actuation with tactile impulse and audible signal

Dual scale with corresponding scale graduation (see table)

Type B, BC, C with push-button release

Pre-set DREMOMETER for serial production wherever the same value always needs to be applied

If fixed setting at the factory is desired is required, please state the Nm value when ordering (price on request)
