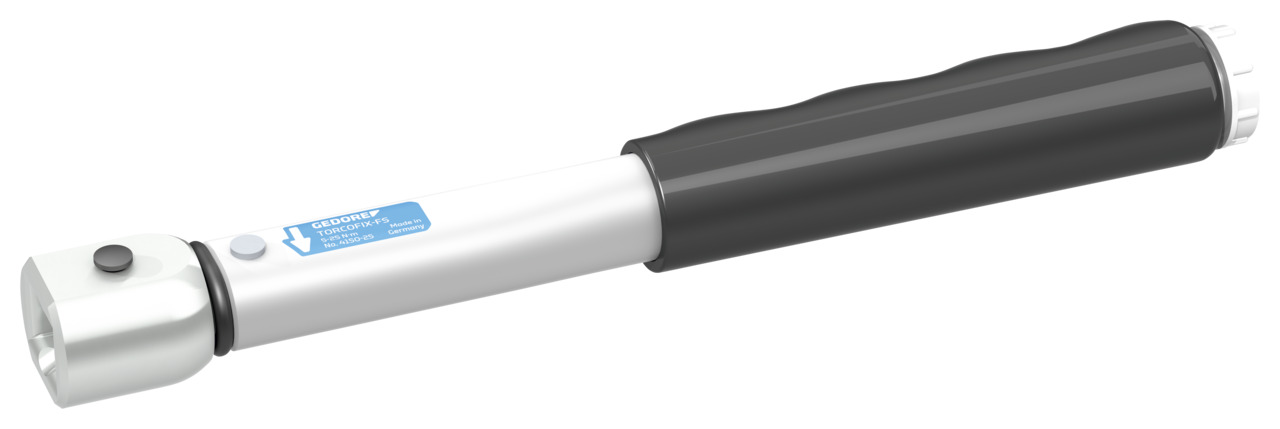

4150 — 4151 Torque wrench TORCOFIX FS

SKU: 1065512 Categories: ,

Specifications

Find A Dealer
Request Info

About this product

Use:

Controlled screw tightening in the range of 5 - 200 Nm without scale

Pre-set, releasing and sturdy tubular torque wrench with rectangular cavity for industry and the trades

Features:

Classified as per DIN EN ISO 6789-2:2003 Type II Class A; adjusted to a maximum permissible +/-3% deviation and thus with a greater precision than the standard-stipulated +/-4%

For controlled r.h and l.h. fastening

Sturdy, varnished tubular steel construction, with zinc-plated rectangular cavity (SE 9x12 mm or 14x18mm)

Release system triggers a tactile and audible signal

Factory depth gauge: 17.5 mm (9x12 mm) or 25 mm (14x18 mm)

Operation only with end fittings with standardised depth gauges, otherwise inaccuracies can arise

Depending on the application, access is possible from the front (e.g. open-end fitting) or side (e.g. reversible ratchet and socket).

If fixed setting at the factory is desired is required, please state the Nm value when ordering (price on request)

Information

  • Contents (Qty of pieces):1
  • Article description 1:Torque wrench for pre-setting TORCOFIX FS
  • Material:lacquered tubular steel construction, with galvanized rectangular support
  • Article description 2:5-200 Nm
  • Depth gauge [metric]:17,5 mm
  • Drive type/drive:Rectangular cavity
  • REACH:compliant
  • Storage/Content:Plastic box
  • Safety:Catch lock
  • Trigger mechanism:Short path triggering
  • Receptacle width [mm]:22 mm
  • Mounting height [mm]:18,5 mm
  • Precision +/-:+/- 3 %
  • Tightening direction:Left and right
  • Fixed setting:1
  • Test certificate:DIN EN ISO 6789-2:2017
  • Target groups:Automotive Industry Military Energy Mechanical engineering Service Utilities
  • Range of application:Assembly Series assembly Production
