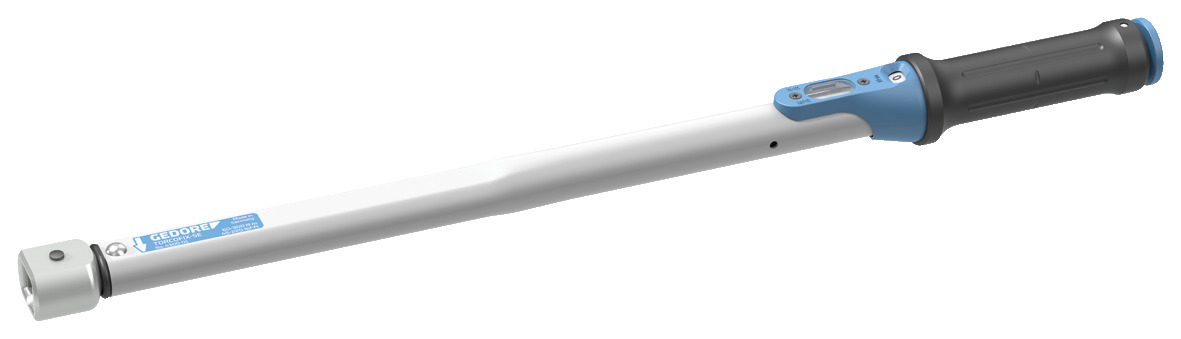

4100 — 4301 Torque wrench TORCOFIX SE

Use:

Controlled screw tightening in the range of 5 - 400 Nm / 3,7 - 300 lbf·ft

Adjustable, releasing and sturdy tubular torque wrench with rectangular cavity for industry and the trades

Features:

Classified as per DIN EN ISO 6789-2:2017 Type II Class A; adjusted to a maximum permissible +/-3% deviation and thus with a greater precision than the standard-stipulated +/-4%

Incl. traceable test certificate

For controlled r.h and l.h. fastening

Sturdy, varnished tubular steel construction, with zinc-plated rectangular cavity (9x12 mm or 14x18mm) and high-grade plastic parts

Ergonomically shaped, convenient black plastic handgrip with calibration aid

Dual scale Nm and lbf·ft below a window with a magnifying-glass effect

With micrometre scale for main Nm scale for setting interim values

Release system triggers a tactile and audible signal

Ergonomic system for torque adjustment

Factory depth gauge: 17.5 mm (9x12 mm) or 25 mm (14x18 mm)

Operation only with end fittings with standardised depth gauges, otherwise inaccuracies can arise

Depending on the application, access is possible from the front (e.g. open-end fitting) or side (e.g. reversible ratchet and socket).
