3293 U‑10 Reversible ratchet 3/4″

In stock

SKU: 1066918 Categories: ,
3293 U-10 Reversible ratchet 3/4"
3293 U-10 Reversible ratchet 3/4" - Image 2

Specifications

Height (cm)0
Length (cm)62
Width (cm)0
Dimensions62 cm
Weight2.63 kg
Request Info

About this product

Suitable for robust use in industry and commercial vehicles

Acc. to DIN 3122, ISO 3315

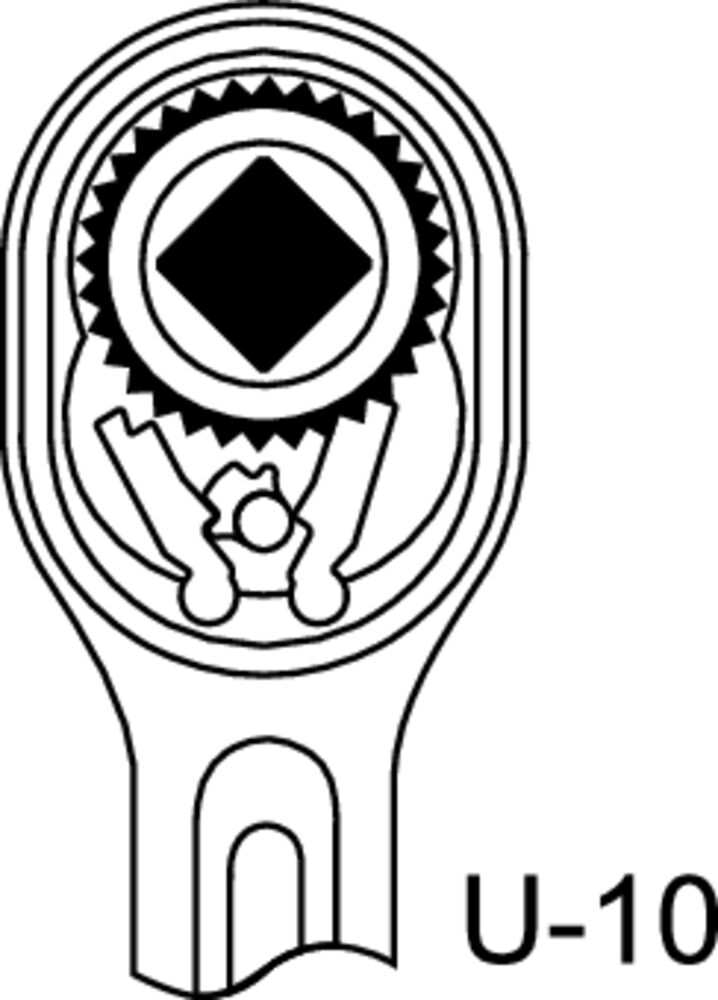

With recessed lever change, locks in middle position

Return angle 11.25°

With slip-on tube No. E-3293 U-3/90

For hand-operated sockets and accessories with square drive as per DIN 3120 - D 20, ISO 1174 with locking pin

Vanadium steel 31CrV3, chrome-plated

Information

  • Weight [g]:2630 g
  • Drive square inch:3/4"
  • Contents (Qty of pieces):1
  • Total length [mm]:620 mm
  • Article description 1:Reversible ratchet 3/4"
  • Material:Chrome-vanadium steel 31CrV3
  • Drive connector square [metric]:20 mm
  • Return angle:11,25 °
  • Ratchet head height:57,5 mm
  • Number of teeth:32
  • REACH:compliant
  • Weight [kg]:2,63 kg
  • Push-button release:0
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
