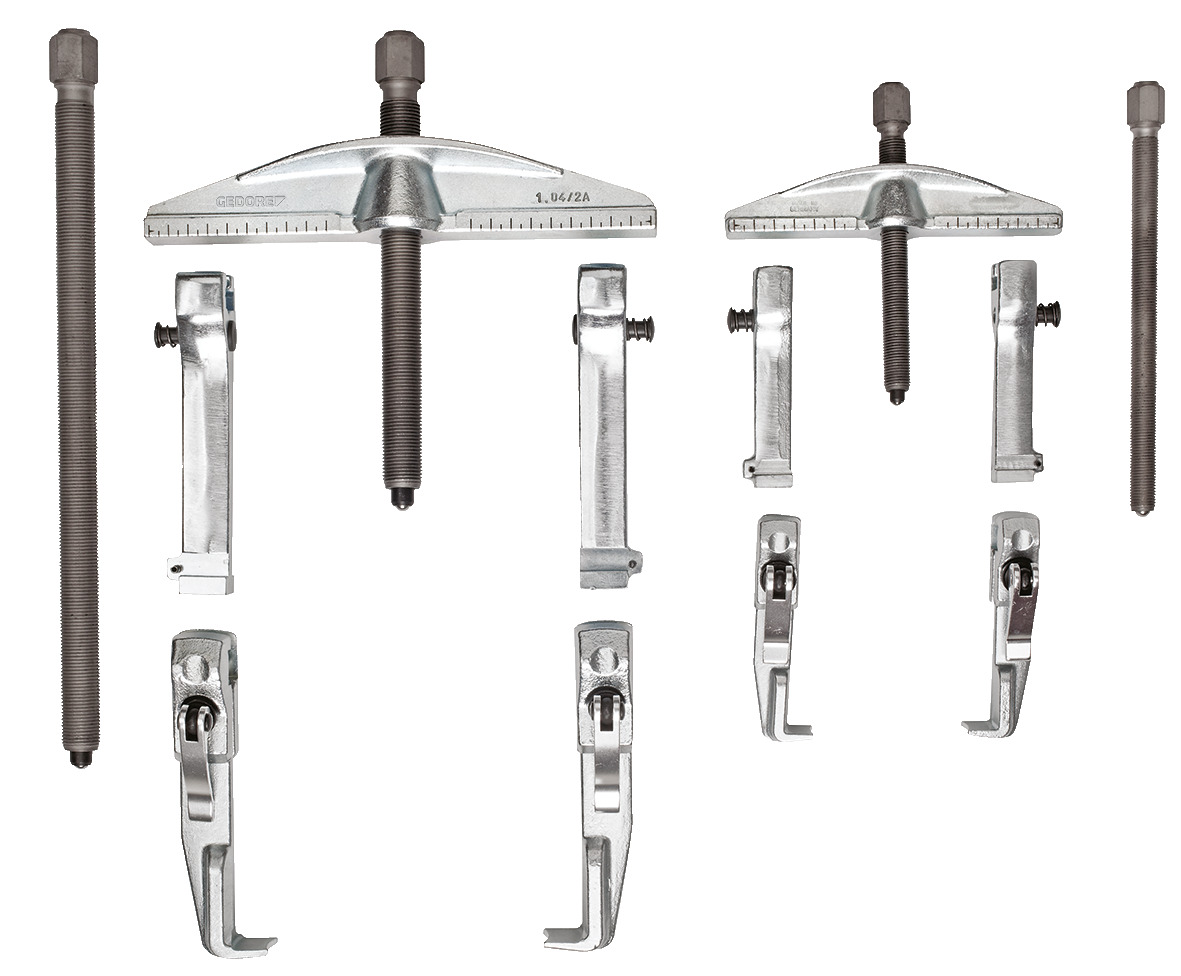

1100 CT2‑1.04/12A Puller set int./ext., in 2/2 L‑BOXX 136 module

Universal internal/external puller set

Max. capacity 3 and 5 t

For clamping widths (SW) up to Ø 200 mm outside, Ø 70-260 mm inside, and clamping depths (ST) up to 300 mm

2 additional spindles for max. clamping depth

Drop forged cross beams for more safety

Spindles with special coating, where greasing is not necessary

With 3 of 4 spindles the spindle tip can be turned (ball/tip)

Bending moment reinforced cross beam No. 1.04 for higher loads

Quick-release pulling legs with intregral T-profile for a better transmission of force

Reinforced hook shape

Quick release for comfortable and quick release and tensioning of the hooks

2 rigid extensions each 100 and 150 mm with leg brake for quick adjustment of the legs

Check-Tool insert for clean storage of tools

The tools are completely recessed in the foam, so several inserts can be stacked

The insert can be used for the L-BOXX® 136 as well as in all drawers with a height of at least 90 mm
