1.04/B Universal puller 2‑arm pattern, rigid legs with leg brake
Specifications
About this product
Due to the bending-moment reinforcement on its back face, the energy-saving design of the cross-beam means even stronger and safer pulling work
Strong drop forged pattern
Puller hook forged from one piece
The legs clamp automatically when under tension
With leg brake - prevents unintentional leg slipping. The leg can be slid along the cross-beam at the push of a button
Can be used as external and internal puller by repositioning the legs
Scale for uniform adjustment of the puller legs. Allows centred pulling, with optimised application of force, even when extremely high pulling forces are required

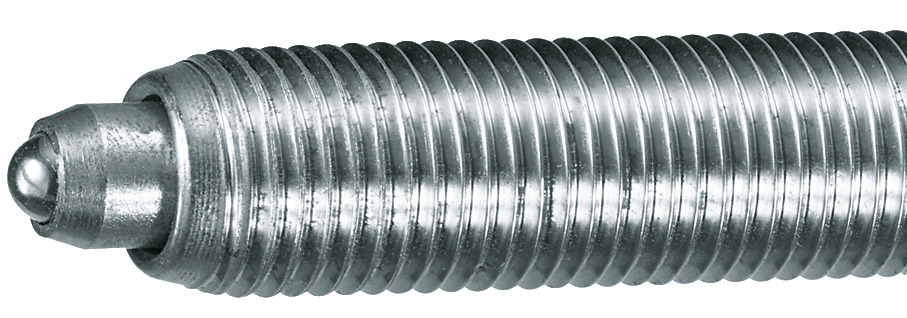

Exchangeable spindle tip (ball or tip)
Spindle thermo-chemically hardened
Information
- Contents (Qty of pieces):1
- Use:For removing drive pulleys, wheels, ball bearings etc.
- Article description 1:Universal puller
- Version:2-arm pattern
- Graduation:1
- Article description 2:2-arm pattern, rigid legs with leg brake
- Number of hooks:2
- reversible arms available:1
- Clamping bracket available:0
- Number of arms:2
- Hook brake available:1
- Hook can be moved parallel:1
- Quick release lever available:0
- 3D data available:0
- Spindle anti-slip device:0
- Spindle Surface coating:Nitro-carburated
- Screws included:0
- Anti-slip device on the spindle:0
- Exchangeable spindle tip:1
- Can be retrofitted with hydraulic spindle:0
